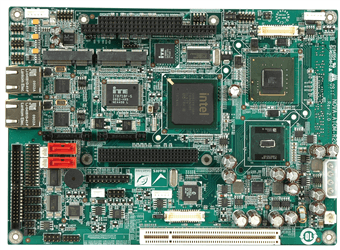

NOVA-945GSE

5.25” SBC, Intel® Atom™ N270 1.6GHz

End of Life

End of Life Notice

* Effective Date: 2016/08/19

» 1.6GHz Intel® Atom™ N270 processor with fanless support
» 400/533 MHz DDR2 SO-DIMM memory up to 2 GB
» Support dual PCIe Mini card/PCI slot for expansion
» Dual LVDS support dual display output
» CF socket for storage expansion
» TPM support
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® 945GSE+ICH7M
Memory Max. One 200 pin 400/533MHz DDR2 SDRAM SODIMM
supports up to 2GB
CPU Socket On Board
I/O Interface Ethernet
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Audio AC’97 ALC655 codec
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 10% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
FSB FSB
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
3 x RS-232
1 x RS-422/485
6 x USB 2.0

Ordering Information

NOVA-945GSE-N270-R20 5.25" SBC,Intel ATOM Processor N270 1.6GHz,18 bits LVDS/ VGA/ HDTV,Dual PCIe Mini,Dual PCIe GbE,USB2.0,SATA,RoHS
