• Overview

    ● 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor
    ● IEI jumper-less function
    ● Triple independent display via dual HDMI+VGA, dual HDMI+LVDS or HDMI+LVDS+VGA
    ● DDR3/DDR3L 1600/1333 MHz SDRAM support up to 8 GB
    ● COM, USB 3.0, SATA 6Gb/s and audio support
    ● Intel® GbE LAN with Intel® AMT 9.0 support
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 with iRIS-1010 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support (2.4GHz, quad-core, 6MB cache, TDP=47W)
      Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W)
      Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache,
      TDP=37W)
      Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache,
      TDP=37W)
      Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W)
      Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W)
      Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W)
      ChipsetIntel® QM87
      MemoryOne 204-pin 1600/1333 MHz
      dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM
      Memory Max.8GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)115 X 165
      Net Weight350g
      Storage
      Storage2 x SATA :6Gb/s with 5V SATA power connector(RAID0,1 supported)
      I/O Interface
      Display Output1 x VGA
      2 x HDMI :up to 2500x1600@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I217-LM PHY with Intel® AMT 9.0
      support
      LAN2: Intel® I210-AT PCIe controller
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Front Audio :2x5 pin
      I/O Interface2 x Internal RS-232 :2x5 pin, p=2.0
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      2 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe mini Card Slot :Full-size(support mSATA)
      1 x PCIe/104 :Type 2 slot (optional)
      Other Features
      iRIS1 X iRIS-1010 slot
      TPM2x10 pin
      Power
      Power Consumption12V@4.78A (Intel® Core™ i7-4770EQ 2.4GHz CPU
      with 4 GB 1333 MHz DDR3 memory)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      NANO-QM871-i1-i7-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      NANO-QM871-i1-i3-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4100E processor(37W) with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      NANO-QM871-i1-C-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Celeron™ 2000E processor (37W) with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      NANO-QM871-i1-i5-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4400E processor(37W) with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
    • Package Contents

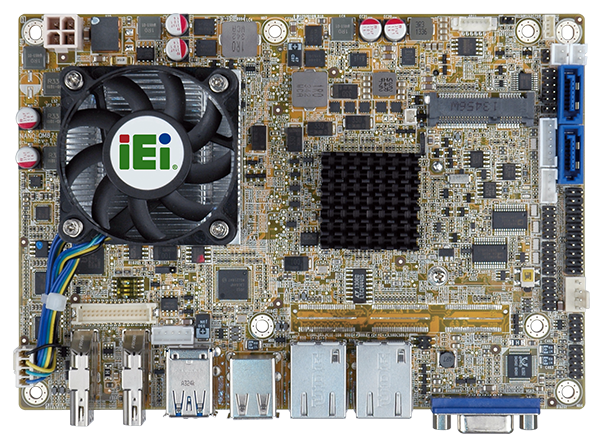

      • 1 x NANO-QM871-i1 single board computer

      • 1 x Audio cable

      • 1 x CPU cooler

      • 1 x Power cable

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit
