NANO-HM651

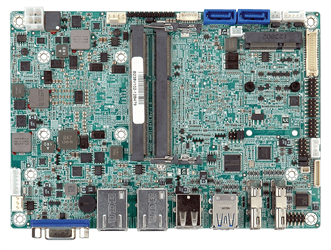

EPIC SBC with on-board Intel® Celeron® Dual Core 847E 1.1GHz CPU

  • Overview

    ● EPIC SBC with on-board mobile 32nm Intel® Celeron® dual-core 847E 1.1GHz processor
    ● Dual HDMI/VGA with dual display support
    ● Dual-channel 204-pin 1333/1066 MHz DDR3 SO-DIMMs support up to 8 GB
    ● Easy assembly heat spreader for thermal management
    ● Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU Cooler Heat Spreader
      Display
      Display Dual display supported
      1 x VGA
      2 x HDMI
      1 x 24-bit dual-channel LVDS
      Environment
      Humidity 5% ~ 95% non-condensing
      Operating Temperature -10°C ~ 60°C (14°F ~ 140°F)
      Expansion Slots
      Expansion Slots 1 x PCIe Mini card slot with
      mSATA support
      I/O Interface
      Audio Realtek ALC662 HD Audio codec
      Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
      Ethernet Dual LAN: Realtek RTL8111E
      PCIe GbE controller with ASF
      2.0 support
      I/O Interface 2 x RS-232
      1 x RS-422/485
      2 x USB 3.0
      4 x USB 2.0
      1 x 4-pin wafer for SMBus
      1 x 4-pin wafer for I²C
      1 x 6-pin wafer for PS/2 KB/MS
      1 x TPM connector (2x10 pin)
      I/O Interface
      I/O Interface 2 x USB 3.0
      2 x RS-232
      1 x RS-422/485
      4 x USB 2.0
      Option
      iRIS N/A
      Power
      Power consumption 12V@3.01A (Intel® Celeron®
      847E 1.1GHz with 1333MHz
      4GB memory)
      Storage
      Storage 2 x SATA 6Gb/s
      System
      Chipset Intel® HM65
      CPU Intel® Celeron® 847E 1.1GHz
      CPU Socket On Board
      Memory Max. 2 x 204-pin 1066/1333MHz
      dual-channel DDR3 SO-DIMMs
      (system max. 16GB)
      Watchdog Timer
      Watchdog Timer Software programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-HM651-847E-R10 EPIC SBC supports Intel Celeron dual core 847E 1.1GHz CPU,Dual DisplayPort/ VGA/ LVDS,Dual GbE,USB 2.0,PCIe Mini,SATA 6Gb/s,Audio and RoHS
    • Package Contents

      • 1 x NANO-HM651 single board computer with heat spreader

      • 1 x Audio cable

      • 1 x Power cable

      • 1 x Mini jumper pack

      • 1 x SATA with power cable kit

      • 2 x Plastic shaft for securing half-size PCIe Mini card

      • 1 x QIG (Quick Installation Guide)

      • 2 x RS-232 cable
