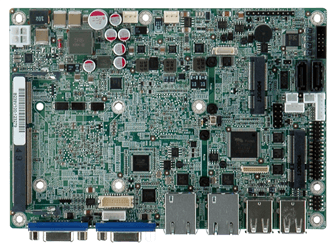

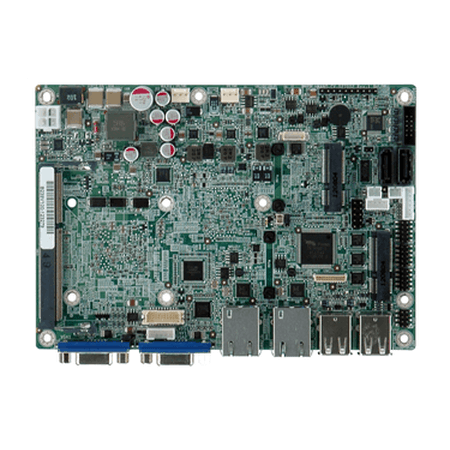

NANO-CV-D25502/N26002

EPIC SBC with Intel® Atom™ D2550 1.86GHz/N2600 1.6GHz

  • Overview

    ● EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory
    ● Dual display support by dual VGA and 18/24-bit single-channel LVDS
    ● 1066/800HMz DDR3 SO-DIMM supports up to 4 GB
    ● Easy assembly heat spreader for thermal management
    ● Wide power voltage range supports 9V ~ 28V power input
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerHeat Spreader
      Display
      DisplayDual display supported
      VGA1: Integrated in Intel® CPU
      VGA2: Integrated in NXP
      PTN3392
      1 x Single-channel 18-bit
      (N2600)/24-bit LVDS2 (D2550)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550
      processor
      -20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600
      processor
      Expansion Slots
      Expansion Slots1 x PCIe Mini card slot with
      mSATA support
      1 x half-size PCIe Mini card slot
      I/O Interface
      AudioRealtek ALC662 HD Audio Codec
      Digital I/O8-bit digital I/O (4-bit input / 4-bit output)
      EthernetDual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support
      I/O Interface3 x RS-232
      1 x RS-422/485
      6 x USB 2.0
      1 x 6-pin header for KB/MS
      I/O Interface
      I/O Interface1 x RS-422/485
      3 x RS-232
      6 x USB 2.0
      Power
      Power consumption12V@1.59A (Intel® dual core
      D2550 CPU with 1333MHz 4GB
      DDR3 memory)
      12V@1.23A (Intel® dual core
      N2600 CPU with 1333MHz 4GB
      DDR3 memory)
      Storage
      Storage2 x SATA 3Gb/s or
      1 x SATA 3Gb/s + 1 x mSATA
      System
      ChipsetIntel® NM10
      CPUIntel® Atom™ D2550 1.86GHz
      Intel® Atom™ N2600 1.6GHz
      CPU SocketOn Board
      Memory Max.1 x 204-pin 1066 MHz 4 GB
      DDR3/DDR3L (1.35V) SO-DIMM
      (system max. 4GB) for D2550
      1 x 204-pin 800 MHz 2 GB
      DDR3/DDR3L (1.35V) SO-DIMM
      (system max. 2GB) for N2600
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-CV-D25502-R10EPIC SBC with Intel Atom D2550 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio
      NANO-CV-N26002-R10EPIC SBC with Intel Atom N2600 1.6GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio
      NANO-CV-N28002-R10EPIC SBC with Intel Atom N2800 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio
    • Package Contents

      • 1 x NANO-CV-D25502/N26002 single board computer

      • 1 x Audio cable

      • 1 x Heat spreader

      • 1 x Mini jumper pack

      • 1 x Power cable

      • 1 x One Key Recovery CD

      • 1 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 1 x SATA with 5V output cable kit

      • 1 x Utility CD
