NANO-CV-D25501/N26001

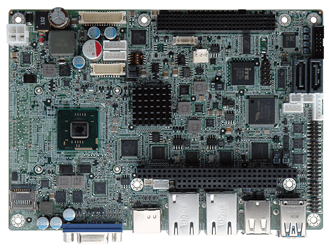

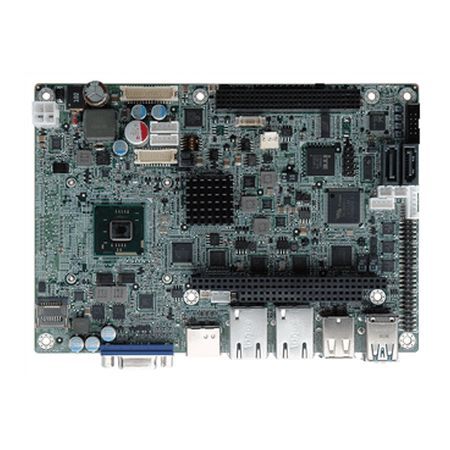

EPIC SBC with Intel® D2550/N2600

  • Overview

    ● EPIC form factor with Intel® D2550/N2600 dual-core proccessor supporting DDR3/DDR3L (1.35V) memory
    ● Wide range 9V ~ 28V DC input design
    ● Flexible VGA, dual LVDS and HDMI with dual-display support
    ● Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage
    ● Complete I/O with six USB, two SATA 3Gb/s, four COM and audio
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerHeat Spreader
      Display
      DisplayDual display supported
      VGA (up to 1920x1200@60Hz)
      (Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)
      HDMI (up to 1920x1200@60Hz)
      24-bit single-channel LVDS1 (D2550)
      (up to 1440x900@60Hz)
      18-bit single-channel LVDS1 (N2600/N2800)
      (up to 1366x768@60Hz)
      24-bit dual-channel LVDS2 (up to 1920x1200@60Hz)
      DP to LVDS converter (up to 1920x1200(D2550) or 1600x1200(N2600/N2800)@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor
      -20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor
      Expansion Slots
      Expansion Slots1 x PCIe Mini card slot with
      mSATA support
      1 x half-size PCIe Mini card slot
      I/O Interface
      AudioRealtek ALC662 HD Audio Codec
      Digital I/O8-bit digital I/O (4-bit input / 4-bit output)
      EthernetDual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support
      I/O Interface3 x RS-232
      1 x RS-422/485
      6 x USB 2.0
      1 x 6-pin header for KB/MS
      I/O Interface
      I/O Interface1 x RS-422/485
      6 x USB 2.0
      3 x RS-232
      Power
      Power consumption12V@1.59A (Intel® dual core
      D2550 CPU with 1333MHz 4GB
      DDR3 memory)
      12V@1.23A (Intel® dual core
      N2600 CPU with 1333MHz 4GB
      DDR3 memory)
      Storage
      Storage2 x SATA 3Gb/s or
      1 x SATA 3Gb/s + 1 x mSATA
      System
      ChipsetIntel® NM10
      CPUIntel® Atom™ D2550 1.86GHz
      Intel® Atom™ N2600 1.6GHz
      CPU SocketOn Board
      Memory Max.1 x 204-pin 1066 MHz 4 GB
      DDR3 SO-DIMM
      (system max. 4GB) for D2550
      1 x 204-pin 800 MHz 2 GB
      DDR3 SO-DIMM
      (system max. 2GB) for N2600
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-CV-D25501-R10EPIC SBC with Intel Atom D2550 1.86GHz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s,Audio and RoHS
      NANO-CV-N26001-R10EPIC SBC with Intel Atom N2600 1.6GHz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s,Audio and RoHS
      NANO-CV-N28001-R10EPIC SBC with Intel Atom N2800 1.86GHz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s and Audio
    • Package Contents

      • 1 x NANO-CV-D25501/N26001 single board computer

      • 1 x Audio cable 1 x USB cable

      • 1 x Power cable

      • 1 x Mini jumper pack

      • 1 x PS/2 KB/MS Y cable

      • 1 x One Key Recovery CD

      • 1 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 1 x SATA with 5V output cable

      • 1 x Utility CD
