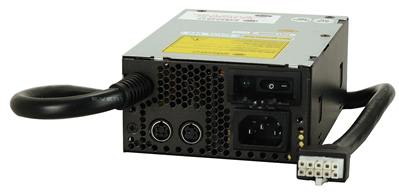

ACE-D825A

252 W Flex Power Supply

End of Life

End of Life Notice

* Effective Date: 2017/09/25

252 W Flex Power Supply

Hardware Spec.

General
Dimensions 140 x 150 x 86
Efficiency 80%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x 5-pin molex 39-01-2100
1 x 4-pin power mini-DIN for +12 VC
1 x 3-pin power mini-DIN for +24 VDC
Storage temperature -20°C ~ 85°C
Watt 150W
Input
Voltage 90~264 VAC Full Range
Output
Voltage +12V/15A,+24V/3A

Ordering Information

ACE-D825A-H-RS POWER SUPPLY;252W,with rubber sleeve;;CCL;RoHS
ACE-D825A-RS POWER SUPPLY;;90~264V;+12V,15.A,+24V,3A;252W;;;;CCL;RoHS
