ACE-925AP-U

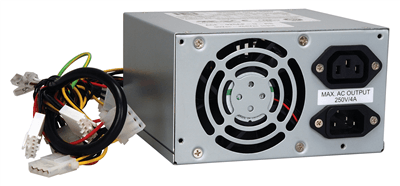

250 W PS/2 Type AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2016/12/22

250 W PS/2 Type AT Power Supply

Hardware Spec.

General
Dimensions 140 x 150 x 86
Efficiency 68%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x P8+P9, 4 x HDD/CDROM, 2 x FDD, 2 x SATA
Storage temperature -25°C ~ 70°C
Watt 250W
Input
Voltage 90 ~ 265 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Output
Voltage +5V/22A,+12V/11A,-5V/0.5A,-12V/0.7A

Ordering Information

ACE-925AP-U-RS 250W AC input PS/2 AT type PFC power supply,CCL;RoHS
