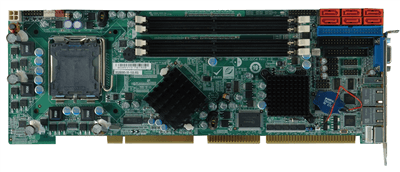

WSB-Q354

PICMG 1.0 CPU Card supports Intel® LGA 775 Core™2 Duo CPU in 45nm process at FSB 800/1066/1333 MHz, Intel® Q35 &ICH9R

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» PICMG 1.0 and RoHS compliant
» Supports Intel® LGA 775 Core™2 Duo processor in 45 nm process (Wofldale) 1333/1066/800 MHz FSB
» Intel® Q35 & ICH9R platform
» Six SATA 3Gb/s with Intel® Matrix Storage Technology supported
» Dual Realtek RTL8111E GbE with ASF 2.0
» TPM 1.2 IT security solution supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® Q35 + ICH9R
Memory Max. Four 240-pin 667/800MHz dual-channel
DDR2 SDRAM DIMMs (system max.
8GB)
CPU Socket LGA775
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Display 1 x VGA
Audio IEI AC-KIT-892HD-R10 7.1 channel HD audio kit via the on-board 10-pin header
connector
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x USB 2.0
6 x Internal USB 2.0
1 x KB/MS
1 x LPT

Ordering Information

WSB-Q354-R41 PCIMG1.0 CPU Card support LGA 775 Core 2 Duo CPU in 45 nm process at FSB 800/1066/1333 MHz,Intel Q35 & ICH9R,VGA,Duel Intel Gbe,6 SATA II with RAID,IDE,FDD,LPT,USB 2.0,RoHs
