WSB-PV-D4251/D5251

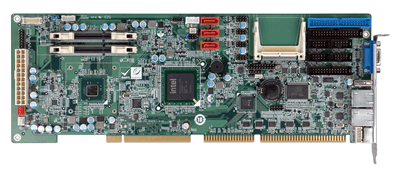

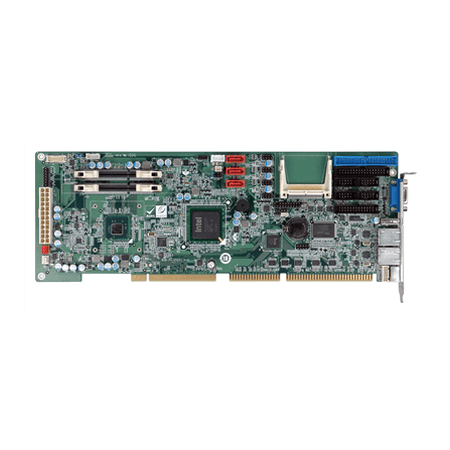

Full-size PICMG 1.0 CPU Card with Intel® Atom™ D425/D525

  • Overview

    ● PICMG 1.0 form factor and RoHS compliant
    ● Supports Intel® Atom™ D425/D525 1.80GHz processor
    ● Supports 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB
    ● Dual PCIe Ethernet, three SATA 3Gb/s, and four RS-232 serial port connectors
    ● VGA and 18-bit single-channel LVDS for dual independent display support
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerHeatsink (fanless)
      (optional CPU fan by
      19FFD124010HB2A7-000001-RS)
      Environment
      Humidity5% ~ 95%, noncondensing
      Operating Temperature-20°C ~ 65°C (-4°F~149°F) with free air
      for D425 CPU
      -20°C ~ 60°C (-4°F~140°F) with free air
      for D525 CPU
      -20°C ~ 70°C (-4°F~158°F) with force air
      for D425/D525 CPU
      Expansion Slots
      Expansion SlotsN/A
      I/O Interface
      AudioIEI AC-KIT-892HD-R10 7.1 channel HD audio kit via the on-board 10-pin header
      connector
      Digital I/O8-bit Digital I/O (4-bit input/4-bit output)
      DisplayDual display supported
      1 x VGA
      1 x 18-bit single-channel LVDS
      EthernetLAN1: Realtek RTL8111E PCIe GbE
      controller with ASF 2.0 support
      LAN2: Realtek RTL8111E PCIe GbE
      controller
      I/O Interface
      I/O Interface4 x Internal RS-232
      6 x Internal USB 2.0
      1 x KB/MS
      1 x LPT
      1 x USB 2.0
      Power
      Power consumption5V@ 5.16A, 12@ 0.55A
      (Intel® Dual Core Atom™ D525 1.80GHz
      with two 2GB 1066MHz DDR3 memory)
      Storage
      Storage3 x SATA 3Gb/s
      1 x IDE
      1 x FDD
      1 x CF Type II
      System
      ChipsetIntel® ICH8M
      CPUIntel® Atom™ D525 1.8GHz
      Intel® Atom™ D425 1.8GHz
      CPU SocketOn board
      Memory Max.Two 204-pin 800MHz DDR3 SDRAM SODIMMs
      (system max. 4GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WSB-PV-D4251-R10Full-size PICMG 1.0 CPU card with Intel Single Core Atom D425 1.80GHz/512KB L2 cache,DDR3,VGA/LVDS,Dual PCIe GbE,SATAII,COM,USB 2.0 and Audio,RoHS
      WSB-PV-D5251-R10Full-size PICMG 1.0 CPU card with Intel Dual Core Atom D525 1.80GHz/1MB L2 cache,DDR3,VGA/LVDS,Dual PCIe GbE,SATAII,COM,USB 2.0 and Audio,RoHS
    • Package Contents

      • 1 x WSB-PV-D4251/D5251 single board computer 1 x Mini jumper pack

      • 1 x Dual RS-232 cable (P/N: 19800-000051-RS) 1 x One Key Recovery CD

      • 1 x USB cable (P/N: 19800-003100-300-RS)

      • 1 x QIG

      • 2 x SATA cable (P/N: 32000-062800-RS) 1 x Utility CD
