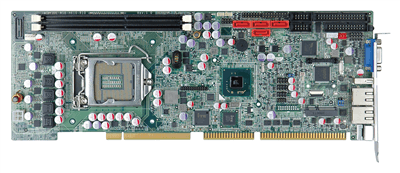

WSB-H610

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61,

  • Overview

    ● Full-size PICMG 1.0 CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Two DDR3 & DDR3L 1333/1066 MHz DIMM SDRAM supported up to 16 GB
    ● Embedded controller on board supports infrared and PECI 2.0 technologies
    ● Dual Realtek PCIe GbE and LAN1 with ASF 2.0 support
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      CF-1156E-R11
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion SlotsPCIe Mini
      I/O Interface
      AudioSupports by IEI AC-KIT-892HD-R10
      audio kit
      Digital I/O8-bit Digital I/O
      Display1 x VGA
      1 x DVI-D(via header to IO-KIT-001-R20
      DVI-D/USB module)(optional)
      EthernetLAN1: Realtek RTL8111E PCIe GbE
      controller with ASF 2.0 support
      LAN2: Realtek RTL8111E PCIe GbE
      controller
      I/O Interface
      I/O Interface1 x I2C
      1 x USB 2.0
      1 x LPT
      1 x KB/MS
      6 x Internal USB 2.0
      1 x Internal RS-422/485
      2 x Internal RS-232
      1 x SMBus
      Power
      Power consumption5V@4.53A, 12V@0.19A,
      Vcore_12V@7.81A, 5VSB@0.18A
      (3.4GHz Intel® Core™ i7-2600K with two
      2GB 1333MHz DDR3 memory)
      Storage
      Storage4 x SATA 3Gb/s
      System
      ChipsetIntel® H61
      CPUIntel® Core™ i7/i5/i3, PentiumR,
      Celeron® processor
      CPU SocketLGA1155
      Memory Max.Two 240-pin 1333/1066MHz dualchannel
      DDR3 & DDR3L (1.35V) DIMMs
      supported
      (system max. 16GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WSB-H610-R10Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS
      WSB-H610-DVI-R10Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA/DVI-D,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS
    • Package Contents

      • 1 x WSB-H610 single board computer

      • 1 x Dual RS-232 cable with bracket (P/N: 19800-000051-RS)

      • 1 x KB/MS Y cable (P/N: 32006-000300-100-RS)

      • 1 x USB cable (P/N: 19800-003100-300-RS) 1 x Mini jumper pack

      • 2 x SATA cable (P/N: 32000-062800-RS) 1 x QIG (Quick Installation Guide)

      • 1 x One Key Recovery CD

      • 1 x Utility CD
