WSB-9452

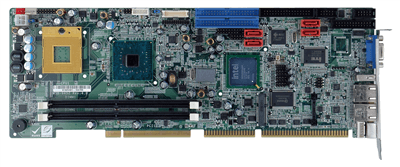

Full-size PICMG 1.0 CPU Card supports Socket M Intel® Core™2 Duo Processors

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» PICMG 1.0 and RoHS compliant
» Socket M Intel® Core™2 Duo, Core™ Duo, Core™ Solo and Celeron® M mobile processors with 533 MHz or 667 MHz FSB
» Four 240-pin 1 GB (max.) 667/533/400 MHz dual-channel DDR2 SDRAM DIMMs supported (system max. 4 GB)
» Two PCIe GbE controllers
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® 945GM + ICH7M
Memory Max. Two 240-pin 2 GB (max.) 667 MHz, 533 MHz or 400
MHz dual-channel DDR2 SDRAM DIMMs supported
CPU Socket Socket M
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Display VGA/HDTV out integrated in Intel® 945GM
DVI (WSB-9452SDVI)
18-bit dual-channel LVDS
Audio Support 7.1 channel HD audio or 5.1 channel
AC-97 audio by IEI audio kits
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, noncondensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x LPT
1 x KB/MS
2 x Internal RS-232
6 x Internal USB 2.0

Ordering Information

WSB-9452-R40 PICMG CPU CARD,Intel Core 2 Duo 533/667MHz processor,CRT/LCD,Dual PCIE GbE and 2 x SATA II,RoHS
