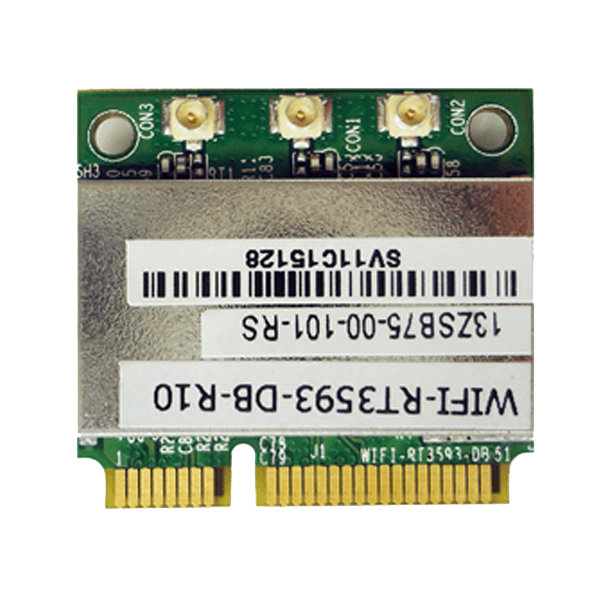

WIFI-RT3593-DB

Wireless LAN Module

End of Life

End of Life Notice

* Effective Date: 2013/08/13


Hardware Spec.

Connectors
Connectors 3 x U.FL (I-PEX) antenna connectors
Controller Chip
Controller Chip Ralink RT3593
Dimensions
Dimensions 28 mm x 30 mm x 4 mm
Environment
Humidity Operating: 10% ~ 90%, non-condensing
Storage: 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 70°C
Safety & EMC CE/FCC/TELEC
Storage Temperature -40°C ~ 150°C
Frequency Range
Frequency Range 2.4/5GHz
I/O Interface
I/O Interface PCIe Mini card
Modulation Type
Modulation Type 802.11a (OFDM)
802.11b (DSSS): CCK, DQPSK, DBPSK
802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM
802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM
Power
Power consumption 430mA@3.3V in continuous Tx
460mA@3.3V in continuous Rx
Rate
Rate 450 Mbps PHY rate in 3T3R mode
Receiver Sensitivity
Receiver Sensitivity 802.11a: -71dBm (Typical) at 54 Mbps
802.11b: -80dBm (Typical) at 11 Mbps
802.11g: -73dBm (Typical) at 54 Mbps
802.11n: -71dBm (Typical) at 450 Mbps
Security
Security WEP 64/128, WPA, WPA2, WAPI
Standards
Standards IEEE 802.11a/b/g/n, Wi-Fi compliant
System
Supported OS WindowsR XP, CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, WindowsR 7 32/64, MAC
Weight
Weight NW: 11g

Ordering Information

WMUSB-V01-R20 802.11 b+g Wireless USB module with VIA VT6656,RoHS
WIFI-RT3593-DB-R10 Wifi module with RT3593 single chip, 3T3R, dual band;ROHS
