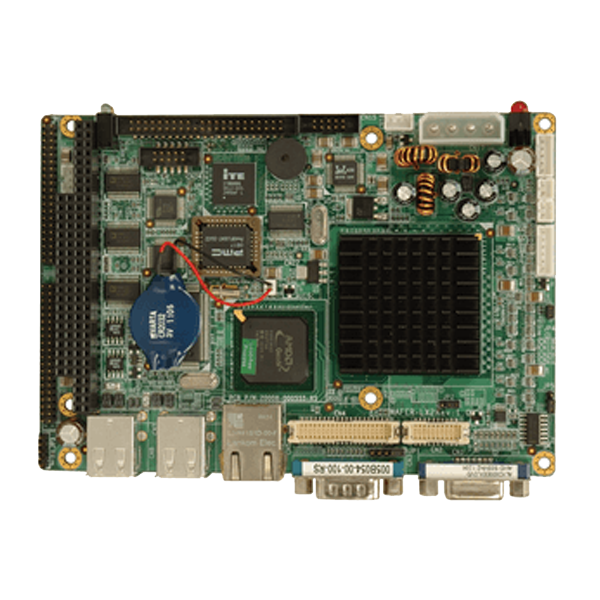

WAFER-LX2

3.5” SBC with AMD Geode™ LX 800 Processor

  • Overview

    ● 3.5"" form factor with AMD Geode™ LX 800 CPU
    ● One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory
    ● VGA, 24-bit TTL, 18-bit LVDS display interfaces
    ● Seven RS-232 and one RS-232/422/485
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Display
      DisplayVGA integrated in AMD Geode™ LX 800
      24-bit TTL
      18-bit single-channel LVDS
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature0°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PC/104
      I/O Interface
      AudioRealtek ALC203 with AC`97 codec
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN: 10/100Mbps RTL8100C Ethernet Controller
      I/O Interface
      I/O Interface4 x USB 2.0
      6 x Internal RS-232
      1 x RS-232
      1 x Internal RS-232/422/485
      Power
      Power consumption5V@1.33A (AMD Geode™ LX 800 with one 1GB 400MHz DDR memory)
      Storage
      Storage1 x CF Type II
      1 x IDE (2x22 pin, P=2.0)
      System
      ChipsetAMD CS5536
      CPUAMD Geode™ LX 800 (500MHz)
      CPU SocketOn Board
      Memory Max.One 200-pin 400/333MHz DDR SDRAM SODIMM
      slot support up to 1GB
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec.
      system reset
    • Ordering Info.

      Item No. Description
      WAFER-LX2-800-R123.5" SBC with AMD LX800 Processor,VGA/LCD,USB2.0,8 COM And Audio,RoHS
    • Package Contents

      • 1 x WAFER-LX2 single board computer

      • 1 x Mini jumper pack

      • 1 x Audio cable

      • 1 x One Key Recovery CD

      • 1 x IDE flat cable 44p/44p

      • 1 x QIG

      • 2 x Quad RS-232 adapter cable

      • 1 x Utility CD
