  • Overview

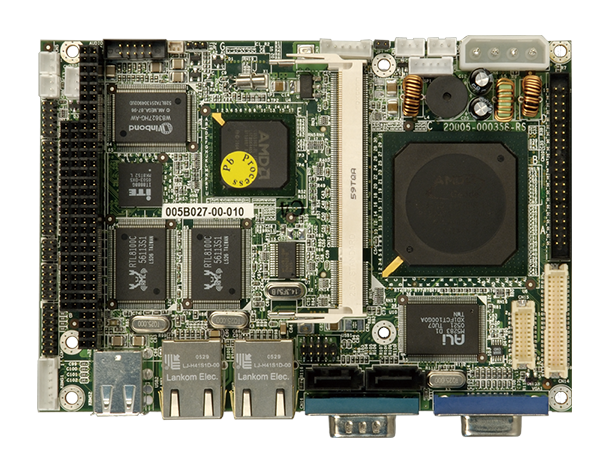

    ● 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant
    ● 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
    ● Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0
    ● 24-bit TTL/18-bit single-channel LVDS
    ● Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe
    ● The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU Cooler N/A
      Display
      Display VGA integrated in AMD Geode™ LX 800
      24-bit TTL
      18-bit single-channel LVDS
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature 0°C ~ 60°C
      Expansion Slots
      Expansion Slots 1 x PC/104
      I/O Interface
      Audio Realtek ALC203 with AC’97 Codec
      Digital I/O 1 x 8-bit digital I/O (2x5 pin)
      Ethernet Dual LAN: 10/100Mbps RTL8100C Ethernet Controller
      I/O Interface
      I/O Interface 2 x Internal USB 2.0
      2 x USB 2.0
      1 x RS-232
      1 x LPT
      1 x RS-422/485
      1 x Internal RS-232
      Power
      Power consumption 5V@1.53A (AMD LX800 with one 1GB 400MHz DDR memory)
      Storage
      Storage 1 x CF Type II
      1 x IDE (2x22 pin, P=2.0)
      2 x SATA 1.5Gb/s (RAID 0, 1 support)
      System
      Chipset AMD CS5536
      CPU AMD Geode™ LX800 (500MHz) processor
      CPU Socket On Board
      Memory Max. One 200-pin 400/333MHz DDR SDRAM SODIMM slot
      support up to 1GB
      Watchdog Timer
      Watchdog Timer Software programmable supports 1~255 sec.
      system reset
    • Ordering Info.

      Item No. Description
      WAFER-LX-800-R12 3.5" AMD LX800 500MHz CPU Board with LCD/CRT VGA,LAN, SATA,USB2.0,Audio,RoHS
    • Package Contents

      • 1 x WAFER-LX single board computer

      • 1 x Audio cable

      • 1 x KB/MS Y cable

      • 1 x IDE flat cable 44p/44p

      • 1 x RS-232/422/485 cable

      • 1 x Mini jumper pack

      • 1 x SATA power cable

      • 1 x USB cable

      • 1 x QIG

      • 2 x SATA cable
