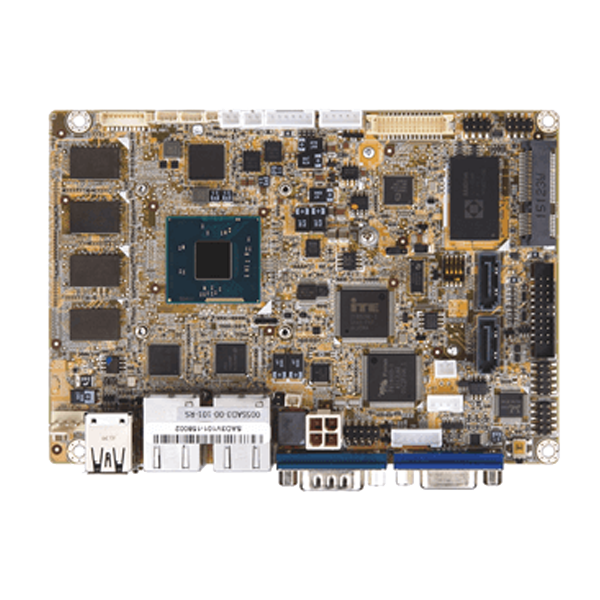

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC

  • Overview

    ● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
    ● Dual independent display support
    ● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory
    ● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
    ● Supports -40°C ~ 85°C
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Display
      DisplayDual independent dispaly
      VGA (up to 2560x1600@60Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-40°C ~ 85°C
      Expansion Slots
      Expansion Slots2 x Full-size PCIe Mini card slot (one with SIM holder)
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I210-IT PCIe controller
      LAN2: Intel® I210-IT PCIe controller
      I/O Interface
      I/O Interface1 x USB 2.0
      1 x USB 3.0
      1 x Internal RS-232
      4 x Internal USB 2.0
      1 x RS-232
      Power
      Power consumption12V@1.32A (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L
      memory)
      Storage
      Storage2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
      1 x mSATA colay SATA2
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      Memory Max.4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
      2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WAFER-BT-E38451W2-R103.5” SBC with Intel 22nm Atom quad-core E3845 1.91GHz (10W) on-board SoC support -40°C ~ 85°C, 4GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38271W2-R103.5" SBC with Intel 22nm Atom dual-core E3827 1.75GHz (8W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38251W2-R103.5" SBC with Intel 22nm Atom dual-core E3825 1.33GHz (6W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38261W2-R103.5" SBC with Intel 22nm Atom dual-core E3826 1.46GHz (7W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BT-E38151W2-R103.5" SBC with Intel 22nm Atom single-core E3815 1.46GHz (5W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    • Package Contents

      • 1 x WAFER-BT single board computer

      • 1 x QIG (Quick Installation Guide)

      • 1 x Power cable

      • 1 x Utility CD
