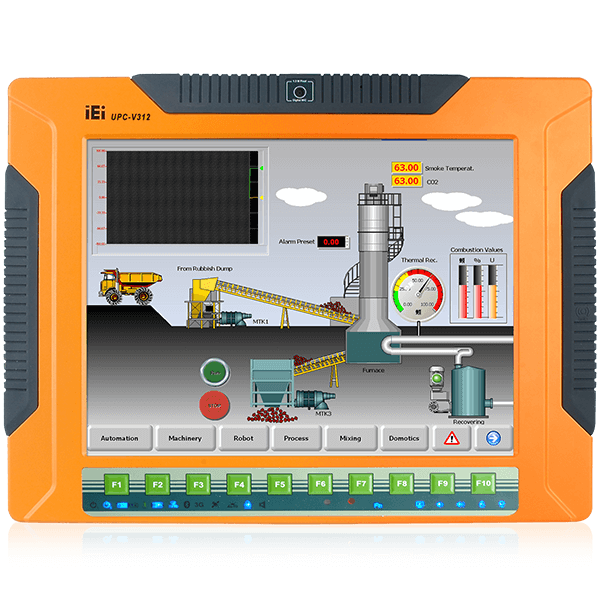

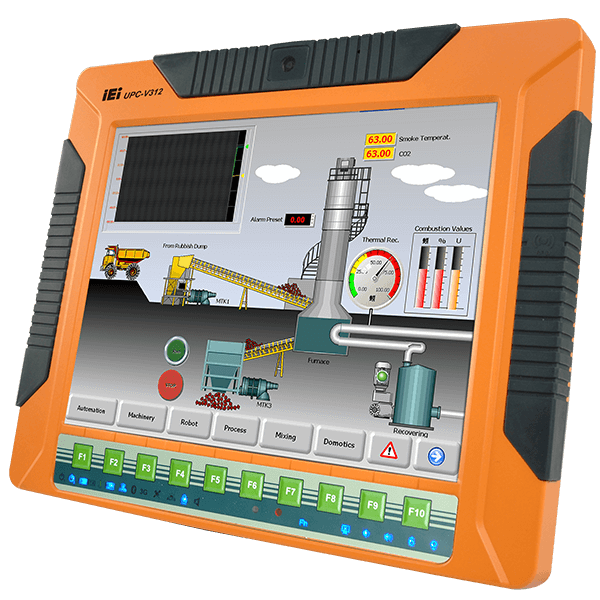

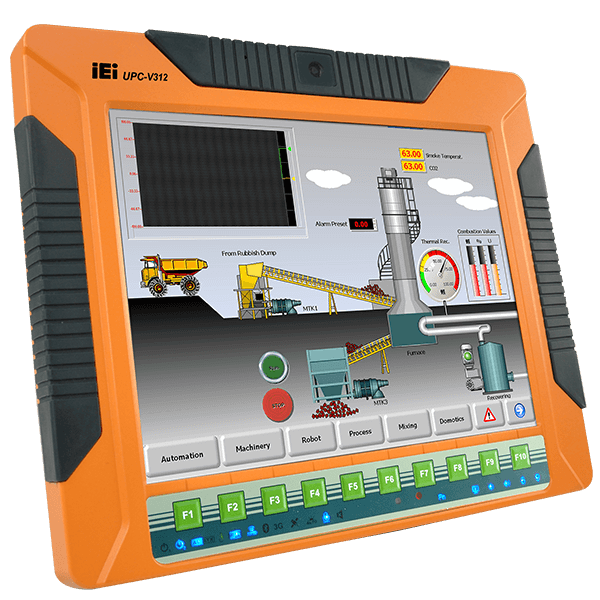

UPC-V312-D525

Intel® Atom™ D525 Dual Core Processor

  • Overview

    ● Fully IP 65 compliant with Intel® Atom™ D525 1.8GHz dual-core processor
    ● 12.1’’ 600 nits 1024 x 768 LCD with LED backlight
    ● Dual DC input, 9V ~ 36V and 10.5V ~ 36V, switch automatically
    ● Dual-band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n 3T3R MIMO design
    ● Reserved space for 3.75G HSUPA USB module
    ● Optional GPS receiver
    ● Optional EM or Mifare RFID reader
    ● Optional Bluetooth module
    ● Built-in 2-mgeapixel webcam with AF, AE and AWB capabilities
    ● CAN-bus interface with isolation
    ● Robust die-casting aluminum chassis
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 600
      Contrast Ratio 700 : 1
      LCD Size 12.1"
      Max Resolution 1024(W) x 768(H)
      Environment
      Humidity 10% to 95% (non-condensing)
      Operating Temperature -20°C~60°C
      Storage Temperature -40°C~85°C
      Expansion Slots
      Expansion Slots PCIe Mini slot for Wi-Fi module
      PCIe Mini slot
      I/O Interface
      I/O Ports and Switches RS-422/485 (4-pin box header)
      RS-232 (DB-9 connector)
      CAN-bus (3-pin terminal block)
      GbE LAN (RJ-45 connector)
      4 x USB connector
      Audio jack (Line-out, Mic)
      VGA port (DB-15 connector)
      RAM On-board 2GB DDR3 SO-DIMM (system max. 2GB )
      LCD
      LCD Color 16.2M
      Pixel Pitch (mm) 0.24mm x 0.24mm
      Viewing Angle (H-V) 150° / 130°
      Other Features
      System Cooling Fanless
      Physical Characteristics
      Cutout Dimensions 338.5 x 276.25
      Dimensions (LxWxH) (mm) 338.5 x 276.25 x 62.86
      Power
      Power adapter Input: 90VAC~264VAC, 50/60Hz; Output: 19V DC
      System
      Chipset Intel® ICH8M
      CPU Intel® Atom™ D525 1.8GHz dual-core processor
      SSD CF Type II / mSATA (SATA2 signal)
      Touch
      Touch Controller DMC 9000
      Touch Screen 5-wire resistive type with RS-232 interface
      Weight
      Weight 4.5 kg/ 6.8 kg
      I/O Interface
      I/O Interface 1 x AT/ATX Switch
      VGA((DB-15))
      4 x USB2.0
      1 x Reset Button
      1 x RS-422/485((4-pin box header))
      1 x RS-232((DB-9))
      2 x Power In(DC jack/terminal block)
      1 x Mic
      1 x CAN-bus((3-pin terminal block))
      1 x LAN(RJ-45 for Gbe)
      1 x Line out
    • Ordering Info.

      Item No. Description
      UPC-V312-D525/R/2G-R13 12.1" 600cd/m² XGA fanless full IP65 panel PC with Intel® Atom™ D525 dual core 1.8GHz,802.11a/b/g/n wireless module, resistive touch screen, 2M camera,microphone,2GB DDR3 RAM, R13
    • Package Contents

      • 1 x Power Adpater

      • 1 x Screw Kit

      • 1 x Touch Pen
