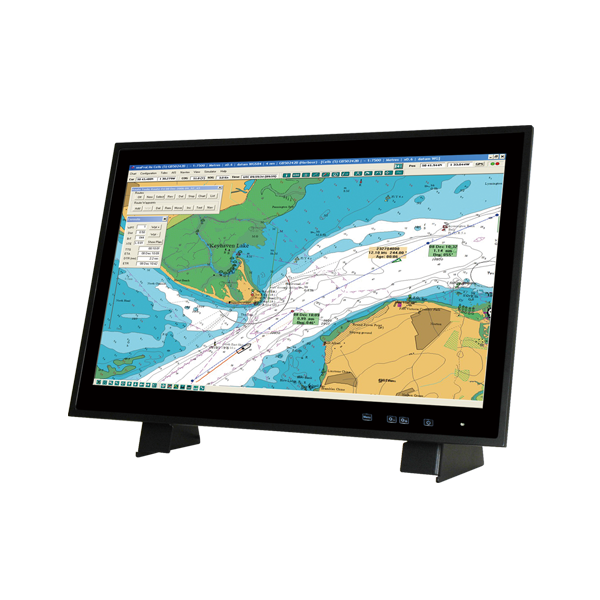

S24A-QM87

● 24” Fanless Panel PC with 4th Generation Intel®Core™ i5 Dual-core Processor

» 24” Fanless Panel PC with 4th Generation Intel®Core™ i5 Dual-core Processor
» -15°C ~ +55°C Wide Temperature and IP66 Protection with Flat-bezel Projected Capacitive Touchscreen
» Excellent Visual Performance
- Three independent displays
- Full OSD function configuration
- 0% ~ 100% full range dimming
- 178°/178° wide viewing angles
- Optical bonding improves visibility under bright light (optional)
» Isolation Protection
- RS-232/422/485 isolated serial ports
- Isolated 18V ~ 36V DC input
- 2 x Isolated CAN-bus 2.0B
» iRIS Remote Management Module

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 300
Contrast Ratio 5000 : 1
LCD Size 24"
Max Resolution 1920(W) x 1080(H)
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -15°C~55°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches DVI-D Signal Input: 2 x DVI (24-pin, female)
VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN*
Composite Video Input: 1 x BNC connector (female)
RAM 4GB 1600MHz DDR3 SDRAM (2GB*2)
Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.2767mm x 0.2767mm
Viewing Angle (H-V) 178° / 178°
Physical Characteristics
Cutout Dimensions 576 mm x 358 mm
Dimensions (LxWxH) (mm) 592 mm x 374 mm x 113 mm
System
Chipset Intel® QM87
CPU Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor
HDD 1 x 2.5" SATA HDD bay
SSD CF Type II
Touch
Touch Controller 6H
Touch Screen EXC7200 (2-point)
Weight
Weight 13.03Kg

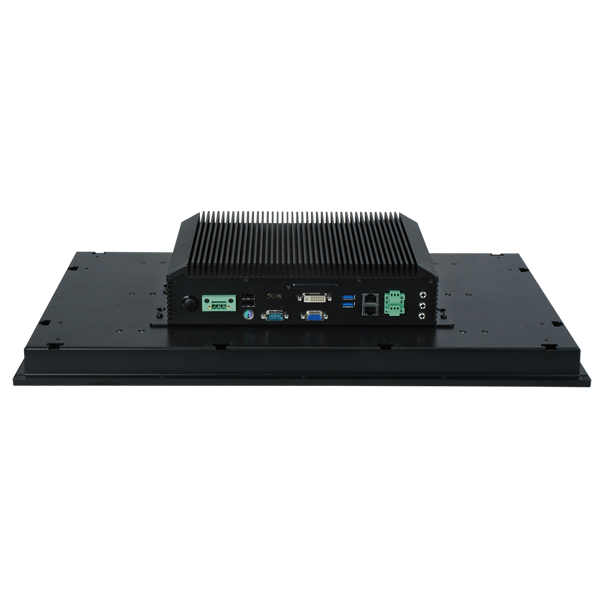

I/O Interface
I/O Interface 2 x LAN(RJ-45 for Gbe)
1 x Line in
1 x Line out
1 x Mic
1 x PS/2
1 x Power Switch
1 x RS-232((DB-9))
4 x RS-422/485((2.5 kv isolation protection))
2 x USB2.0
2 x USB3.0
1 x HDMI
1 x DVI-D
1 x Power In(Isolated 18-36V DC terminal block)
2 x CAN-bus(terminal block (2.5 kv isolation protection))
2 x Antenna SMA((reserved))
1 x VGA

Ordering Information

S24A-QM87i-i5/PC/4G-R10 24" 300cd/m² FHD marine panel PC with Intel® Mobile Core™ i5-4400E 2.7GHz CPU, 2*2GB DDR3 RAM, projected capacitive touch screen, isolated 18-36V DC, iRIS-2400 supported, R10

Package Contents

Package Content
  • 1 x Power Adpater

  • 1 x Screw Kit

  • 1 x Touch Pen
