RACK-500G

5U 5-slot Full-size Rackmount Chassis

End of Life

RACK-500G-White-Chassis
RACK-500G-White-Chassis
  • RACK-500G-White-Chassis
  • RACK-500G-White-Chassis

End of Life Notice

* Effective Date: 2018/09/04

» RoHS compliant design

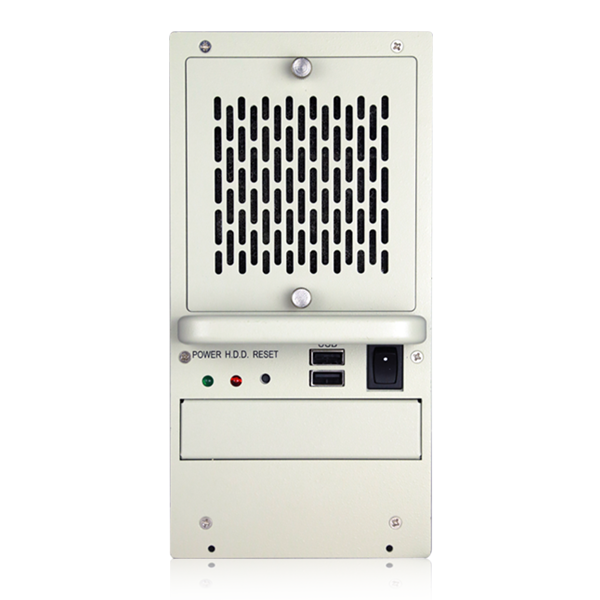

» 2 x USB ports on front panel
» 1 x front-accessible 3.5” and 1 x 3.5” HDD drive capacity
» Hot-swappable 8 cm cooling fan
» 19” rack-mountable carrier (optional)

Hardware Spec.

Color
Color W: White/B: Black
Dimensions
Dimensions 440.2 mm x 110.6 mm x 221.3 mm(DxWxH)
Environment
Humidity 10% ~ 90%
Operating Temperature 0°C ~ 50°C
Expansion Slots
Expansion Slots 5 slots
Form factor
SBC Form Factor Full-size, slot CPU cards
I/O Interface
I/O Openings 1 x LPT, 1 x COM
I/O Ports 2 x USB
Indicator&Buttons
Buttons Power switch, reset
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
System
Cooling method / System Fan 1 x 8 cm
Drive Bays 1 x front-accessible 3.5”
1 x 3.5” HDD
Weight
Weight 6 kg/9 kg(Net/Gross)

Ordering Information

RACK-500GB-R21/A618B 5U Height 5 Slots Full size Chassis,Black,1x 8cm fan,with ACE-A618B-RS-R10(180W),RoHS
RACK-500GW-R21/A618B 5U Height 5 Slots Full size Chassis,White,1x 8cm fan,with ACE-A618B-RS-R10(180W),RoHS
