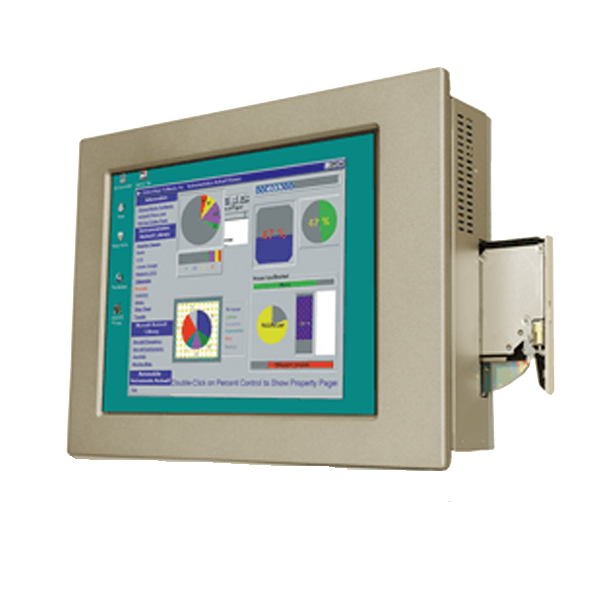

PPC-5190A-H61

Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® Processor

  • Overview

    ● High brightness TFT-LCD panel with LED backlight
    ● Multiple storage options: 2.5"" SATA HDD, CF slot, and mSATA
    ● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
    ● Optional PCI / PCIe x1 expansion slot
    ● Optional slim type CD-ROM drive bay
    ● Robust aluminum front bezel and metal casing
    ● IP 66 compliant front panel for PPC-5190A-H61
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50,000
      Brightness(cd/m2)350
      Contrast Ratio1000 : 1
      LCD Size19"
      Max Resolution1280(W) x 1024(H)
      Environment
      Operating Temperature-10°C ~ 50°C
      Storage Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion SlotsEither 1 x PCI slot or 1 x PCIe slot
      1 x PCIe Mini card
      Other Features
      System CoolingActive with Fan
      Physical Characteristics
      Cutout Dimensions450 x 363
      Dimensions (LxWxH) (mm)482 x 399 x 115
      System
      ChipsetIntel® H61
      CPU2nd/3rd generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor, up to TDP 65W
      HDD1 x 2.5” SATA HDD bay with anti-shook
      SSDSSD CF Type II, mSATA (SATA2 signal)
      Weight
      Weight12.6 kg / 18.2 kg
      I/O Interface
      I/O Interface1 x Line in
      4 x LAN((RJ-45) x 2/SFP fiber LAN x 2)
      1 x AT/ATX Switch
      1 x VGA
      2 x USB3.0
      4 x USB2.0
      1 x RS-422/485
      1 x Line out
      1 x Power Switch
      4 x RS-232
    • Ordering Info.

      Item No. Description
      PPC-5190AD-H61-i3/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS
      PPC-5190AD-H61-i5/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS
      PPC-5190A-H61-i5/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
      PPC-5190A-H61-P/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual CoreG6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
      PPC-5190A-H61-i3/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
      PPC-5190AD-H61-P/R-R1019” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS
    • Package Contents

      • SATA CD-ROM Cable

      • Power Cord

      • Panel Mount Kit

      • Wall Mount Kit

      • Touch Pen
