PCISA-PV-D4251/N4551/D5251

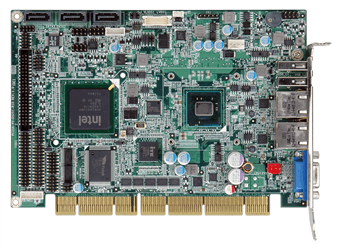

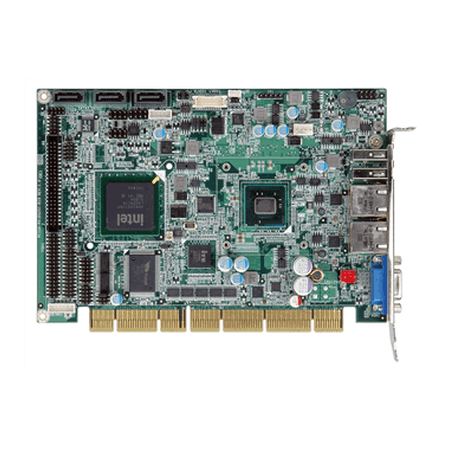

Half-size PCISA CPU Card with Intel® Atom™ D425/N455/D525

  • Overview

    ● PCISA CPU card supports PCI and ISA bus expansion
    ● Supports Intel® Atom™ D525/D425/N455 processor
    ● Supports VGA and 18-bit single-channel LVDS with dual display
    ● Supports 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB for D525/D425 and 2 GB for N455
    ● Supports four COM, six USB 2.0, three SATA 3Gb/s, IDE and CF Type II
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Environment
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots4 x PCI bus support
      ISA bus support by ITE IT8888G PCI
      to ISA bridge
      I/O Interface
      AudioRealtek ALC888 HD codec
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      DisplayAnalog CRT up to 2048x1536 for D525/D425,
      1400x1050 for N455
      Supports for CRT hot plug
      18-bit single-channel LVDS supports resolution
      up to WXGA 1366x768 or XGA 1024x768
      EthernetLAN1: Realtek RT8111E with ASF 2.0 support
      LAN2: Realtek RT8111E
      I/O Interface
      I/O Interface1 x RS-422/485
      3 x RS-232
      1 x LPT
      4 x Internal USB 2.0
      2 x USB 2.0
      Power
      Power consumption5V@3.25A, 12V@0.48A (Intel® singlecore
      Atom™ D425 1.80GHz with 1GB
      1066MHz DDR3 memory)
      Storage
      Storage1 x CF Type II 1 x KB/MS
      1 x FDD
      1 x IDE
      3 x SATA 3Gb/s
      System
      ChipsetIntel® ICH8M
      CPU(1.80GHz/1MB L2 cache)
      Intel® Atom™ D425 single-core processor
      CPU SocketOn Board
      Memory Max.One 204-pin 800MHz DDR3 SDRAM SO-DIMM
      supported (system max. 4GB for D525/D425
      and 2GB for N455)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PCISA-PV-D4251-R10Half-size PCISA CPU card with Intel Single Core Atom D425 1.80GHz/512KB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS
      PCISA-PV-D5251-R10Half-size PCISA CPU card with Intel Dual Core Atom D525 1.80GHz/1MB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS
      PCISA-PV-N4551-R10Half-size PCISA CPU card with Intel Single Core Atom N455 1.66GHz/512KB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS
