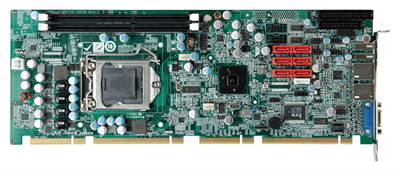

PCIE-Q57A

PICMG 1.3 CPU Card with LGA 1156 socket for Intel® Core™ i7/i5/i3 or Pentium® CPU

  • Overview

    ● PICMG 1.3 with LGA 1156 socket for Intel® Core™ i7/i5/i3 or Pentium® processor
    ● Supports 8 GB (max.) dual-channel 800/1066/1333 MHz DDR3 SDRAM
    ● Intel® GbE LAN controller with Intel® AMT 6.0 support
    ● Fourteen USB 2.0 ports and two COM ports
    ● Six SATA ports with RAID function
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156E-R11
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature0°C ~ 60°C (32°F ~ 140°F)
      Expansion Slots
      Expansion SlotsN/A
      I/O Interface
      AudioIEI AC-KIT-892HD-R10
      7.1-channel HD audio kit via
      the on-board 10-pin header
      connector
      Digital I/O8-bit Digital I/O
      Display1 x VGA
      EthernetLAN1: Intel® 82583V PCIe GbE
      controller
      LAN2: Intel® 82578DM with
      Intel® AMT 6.0 supported by
      iEZman software UI
      I/O Interface
      I/O Interface12 x Internal USB 2.0
      1 x KB/MS
      1 x LPT
      2 x USB 2.0
      1 x VGA
      Power
      Power consumption3.3V@0.89A, 5V@4.62A,
      12V@4.35.A, 5Vsb@0.14A
      (Intel® Core™ i5 660 3.3GHz
      CPU with two 2GB 1066 MHz
      DDR3 memory)
      Storage
      Storage6 x SATA 3Gb/s (RAID 0/1/10/5)
      1 x FDD
      System
      ChipsetIntel® Q57
      CPUIntel® Core™ i7/i5/i3, PentiumR
      processor
      CPU SocketLGA1156
      Memory Max.Two 240-pin 1066/1333MHz
      dual-channel DDR3 SDRAM
      DIMMs (system max. 8GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PCIE-Q57A-R10PICMG 1.3 with LGA1156 socket for Intel Core processor with VGA,Dual Intel GbE,SATAII, COM,USB 2.0 and Audio,RoHS
    • Package Contents

      • 1 x PCIE-Q57A single board computer 1 x Mini jumper pack

      • 1 x Dual RS-232 cable (P/N: 19800-000051-RS) 1 x One Key Recovery CD

      • 1 x USB cable (P/N: 19800-003100-300-RS)

      • 1 x QIG

      • 6 x SATA cable (P/N: 32000-062800-RS) 1 x Utility CD
