PCIE-H610

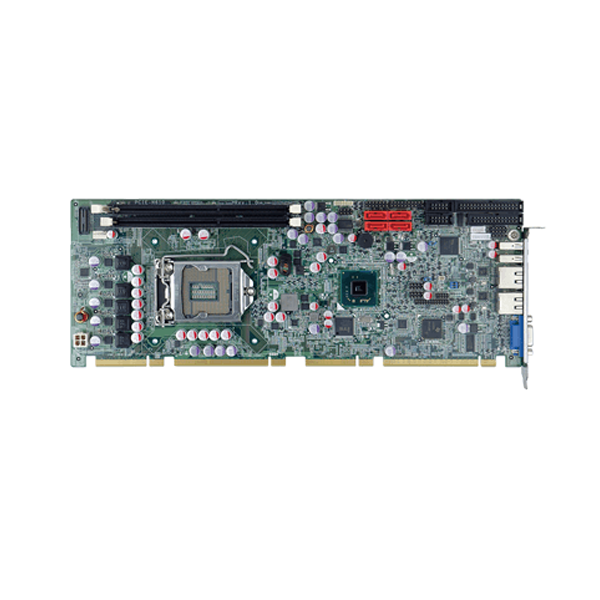

Full-size PICMG 1.3 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61, DDR3

  • Overview

    ● Full-size PICMG 1.3 graphics grade solution
    ● LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel 1333/1066 MHz DDR3/DDR3L SDRAM supported up to 16 GB
    ● Intel® HD graphics technology integrates high-performance graphics and media processing
    ● TPM v1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      CF-1156E-R11
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion SlotsN/A
      I/O Interface
      AudioSupports by IEI AC-KIT-
      892HD-R10 audio kit
      Digital I/O8-bit Digital I/O
      Display1 x VGA
      1 x DVI-D (via header to IO-KIT-
      001-R20 DVI-D/USB module)
      (optional)
      EthernetLAN1: Realtek RTL8111E PCIe
      GbE controller with ASF 2.0
      support
      LAN2: Realtek RTL8111E PCIe
      GbE controller
      I/O Interface
      I/O Interface1 x KB/MS
      4 x Internal USB 2.0
      1 x Internal RS-422/485
      2 x Internal RS-232
      1 x I2C
      1 x VGA
      1 x LPT
      1 x SMBus
      2 x USB 2.0
      Power
      Power consumption5V@4.41A, 12V@0.21A,
      Vcore_12V@7.72A,
      3.3V@1.71A, 5VSB@0.16A
      (3.4GHz Intel® Core™ i7-
      2600K with two 2GB 1333MHz
      DDR3 memory)
      Storage
      Storage4 x SATA 3Gb/s
      System
      ChipsetIntel® H61
      CPUIntel® Core™ i7/i5/i3,
      PentiumR, Celeron® processor
      CPU SocketLGA1155
      Memory Max.Two 240-pin 1066/1333MHz
      dual-channel DDR3/DDR3L
      (1.35V) SDRAM DIMMs
      (system max. 16GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PCIE-H610-R10Full-size PICMG 1.3 CPU Card supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel H61,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,HD Audio and RoHS
    • Package Contents

      • 1 x PCIE-H610 single board computer

      • 1 x Dual RS-232 cable (P/N: 19800-000051-RS)

      • 1 x USB cable (P/N: 19800-003100-300-RS) 1 x Mini jumper pack

      • 4 x SATA cable (P/N: 32000-062800-RS) 1 x QIG (Quick Installation Guide)

      • 1 x One Key Recovery CD 1 x Utility CD
