- Embedded System >
- Industrial Chassis
- ...

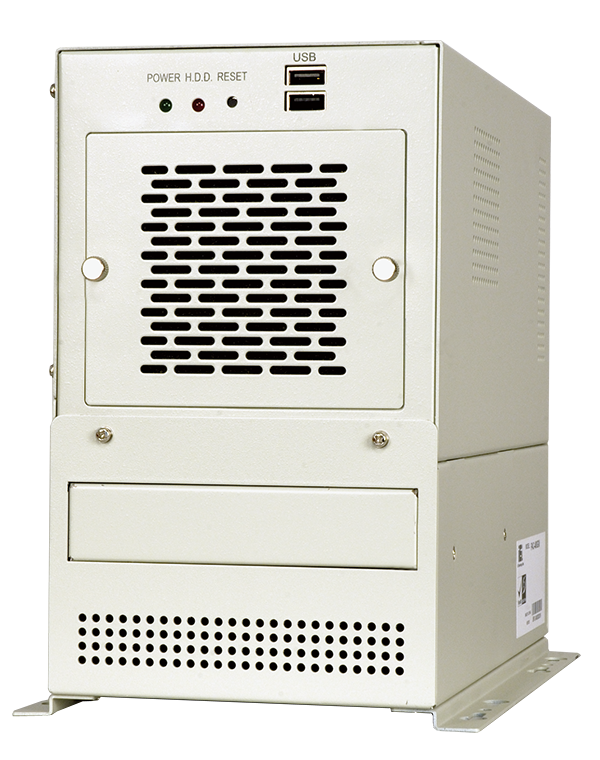

PAC-400G
End of Life
End of Life Notice
Effective Date: 2021/09/10
» RoHS compliant design
» Two USB ports on the front panel
» One 8 cm hot swappable fan
» One 3.5” internal HDD bay
» One 3.5” drive bay, for optional removable drive
» Supports Pentium® 4 half-size CPU card
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size, slot SBC |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 5 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays | 1 x 3.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White |
| Dimensions | |
| Dimensions | 269 mm x 140 mm x 230.5mm(DxWxH) |
| Weight | |
| Weight | 3.8 kg/5.6 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-400GW-R11/A618C | 5-Slot Half size Industrial Chassis,WHite,1x 8cm fan,witH ACE-A618C-RS-R10(180W),RoHS |
|---|
