End of Life Notice
* Effective Date: 2018/01/23

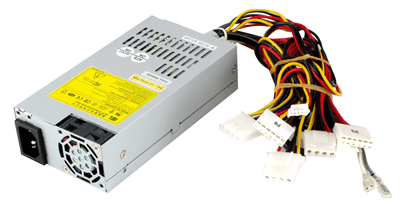

150 W 1U Type AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 81.5 x 40.5 |
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | P8P9, FDD, 3 x HDD |
| Storage temperature | -20°C ~ 80°C |
| Watt | 150W |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Output | |
| Voltage | +5V/16A,+12V/6A,-12V/0.3A |
Ordering Information
| ACE-916AP-RS | 150W AT Power Supply full Range with PFC function;;;;CCL;RoHS |
|---|
