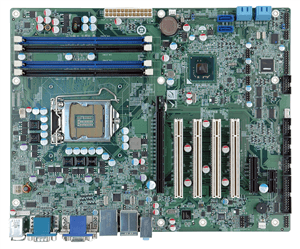

IMBA-Q670

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67

  • Overview
    ● LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
    ● Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
    ● Intel® PCIe GbE with Intel® AMT 7.0 support
    ● USB 3.0 and SATA 6Gb/s supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU Cooler CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/ CF-1156D-RS/ CF-1156E-R11
      Display
      Display Dual display supported
      1 x VGA
      1 x HDMI
      1 x DVI-D
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -10°C ~ 60°C (14°F ~ 140°F)
      Expansion Slots
      Expansion Slots 1 x PCIe x16
      1 x PCIe x4
      1 x PCIe x1
      4 x PCI
      I/O Interface
      Audio Realtek ALC662 HD Audio
      codec
      Digital I/O 8-bit digital I/O (4-bit input/4-bit output)
      Ethernet LAN1: Intel® 82583V PCIe
      controller
      LAN2: Intel® 82579 PHY with
      Intel® AMT 7.0 support
      I/O Interface 5 x RS-232
      1 x RS-422/485
      2 x USB 3.0
      10 x USB 2.0
      1 x LPT
      1 x 4-pin wafer for SMBus
      1 x 4-pin wafer for I²C
      1 x PS/2 KB & MS
      1 x TPM connector (2x10 pin)
      I/O Interface
      I/O Interface 8 x Internal USB 2.0
      1 x Internal RS-422/485
      4 x Internal RS-232
      1 x I²C
      2 x USB 3.0
      2 x USB 2.0
      1 x SMBus
      1 x RS-422/485
      1 x LPT
      1 x RS-232
      Option
      iRIS N/A
      Power
      Power consumption 3.3V@1.65A, 5V@6.31A ,
      12V@0.18A, Vcore@7.88A,
      5VSb@0.15A
      (Intel® Core™ i5-2400 3.10GHz
      CPU with 1333MHz DDR3 4GB
      x 4 memory)
      System
      Chipset Intel® Q67
      CPU Intel® Core™ i7/i5/i3, PentiumR
      Dual, Celeron® processor
      CPU Socket LGA1155
      Memory Max. 4x240-pin 1333/1066MHz
      dual-channel DDR3 SDRAM
      unbuffered DIMM (system max.
      32GB)
      Storage 2 x SATA 6Gb/s
      4 x SATA 3Gb/s
      Watchdog Timer
      Watchdog Timer Software programmable and supports 1~255 sec. system reset

    • Ordering Info.

      Item No. Description
      IMBA-Q670-R30 ATX Motherboard supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel Q67,DDR3,VGA/DVI/HDMI,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,HD Audio,RoHS

    • Package Contents

      • 1 x IMBA-Q670 single board computer

      • 1 x I/O shielding

      • 1 x Mini jumper pack

      • 4 x SATA cable

      • 1 x QIG
