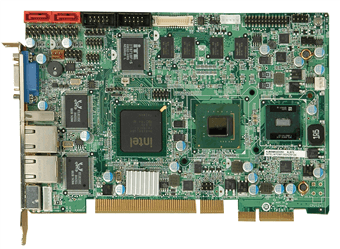

PICOe-945GSE

Half-size PCIe CPU Card with Intel® Atom™ Processor

End of Life

End of Life Notice

* Effective Date: 2016/08/19

» PCIe CPU card supports four PCIe x1 or one PCIe x4, and 4 x PCI expansions
» Intel® Atom™ processor N270 at 1.6GHz core speed with 533 MHz FSB and 512 KB L2 cache
» 512 MB of 533 MHz DDR2 SDRAM on board
» Supports VGA, HDTV-out (up to 1080i) and 18-bit dual-channel LVDS with dual display support
» I/O includes two RS-232, seven USB 2.0 and two SATA
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® 945GSE + ICH7M
Memory Max. On-board 512 MB DDR2 533 MHz memory and
one 200-pin 533/400 MHz DDR2 SDRAM SO-DIMM
supported (system max. 2GB)
CPU Socket On-board
I/O Interface Ethernet
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
Display VGA integrated in Intel® 945GSE
HDTV/TV supports NTSC/PAL and HDTV
resolution up to 1080i
18-bit dual-channel LVDS
Audio Supports 7.1 channel HD audio or 5.1
channel AC-97 audio by IEI audio kits
Power Power consumption
Environment Operating Temperature
Humidity 10% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
6 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x USB 2.0
1 x VGA

Ordering Information

PICOe-945GSE-N270-512MB-R10 PCIe CPU CARD with Intel ATOM N270 1.6G,512MB memory on board,VGA/LVDS/HDTV,Dual GbE,SATA,USB 2.0,CF and Audio,RoHS
