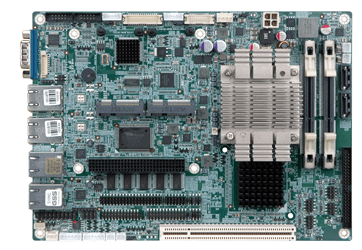

NOVA-PV-D5251

5.25” SBC, Intel® Atom™ D425/D525

  • Overview

    ● 5.25” SBC supports Intel® Atom™ D525/D425 processor
    ● 800/1066 MHz DDR3 supports up to 4 GB
    ● VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support
    ● Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Display
      DisplayDual display supported
      VGA (up to 2048x1536@60Hz)
      18-bit single-channel LVDS (up to
      1366x768@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCI-104
      2 x Full-size PCIe Mini card slot
      1 x PCI
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O1 x 24-bit digital I/O (2x15 pin)
      EthernetLAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
      I/O Interface
      I/O Interface1 x RS-232
      7 x Internal RS-232
      8 x Internal USB 2.0
      1 x LPT
      Power
      Power consumption12V@1.46A (Intel® Atom™ D525 1.8GHz with
      two 800 MHz 1 GB DDR3 SO-DIMM)
      Storage
      Storage1 x CF Type II
      1 x IDE
      2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
      System
      ChipsetIntel® ICH8M
      CPU1.8GHz Intel® Atom™ D525 dual-core
      processor with 1MB L2 cache
      Memory Max.Two 204-pin 800 MHz DDR3 SDRAM SODIMM
      supports up to 4 GB
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec.
    • Ordering Info.

      Item No. Description
      NOVA-PV-D5251-G2L2-R125.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18+48 bits LVDS/VGA,Dual PCIe Mini,Dual PCIe GbE,USB2.0,SATAII,Audio,RoHS
      NOVA-PV-D5251-G4-R125.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18 bits LVDS/VGA,Dual PCIe Mini,Quad PCIe GbE,USB2.0,SATAII,Audio,RoHS
    • Package Contents

      • 1 x NOVA-PV-D5251 single board computer

      • 1 x Audio cable

      • 1 x VGA cable

      • 1 x KB/MS Y cable 1 x Mini jumper pack

      • 1 x Quad port RS-232 cable

      • 1 x One Key Recovery CD

      • 1 x SATA with power cable kit
