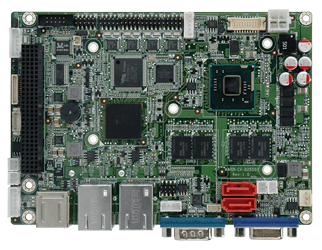

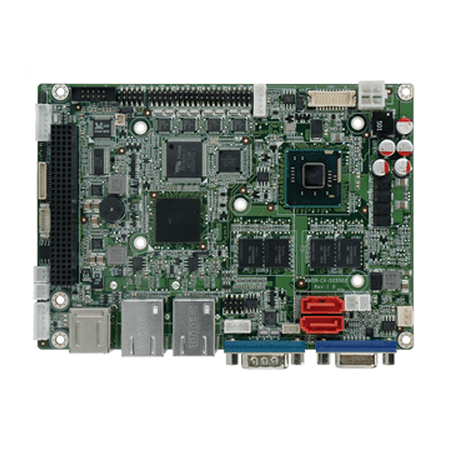

WAFER-CV-D25502/N26002

3.5” SBC Supports Intel® Atom™ D2550/N2600 Processor

  • Overview

    ● 3.5” form factor supports Intel® Atom™ D2550/N2600 dual-core processor with 2 GB DDR3 memory
    ● 12V only single voltage design for AT/ATX power
    ● 24-bit single-channel LVDS via D2550 CPU or 18-bit single-channel via N2600/N2800 CPU support
    ● Supporting PCI-104 and mSATA
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerSpecific Heatsink
      Display
      DisplayDual display supported
      1 x VGA Integrated in Intel® CPU
      1 x Single-channel 18-bit
      (N2600)/24-bit LVDS2 (D2550)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor
      -20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor
      Expansion Slots
      Expansion Slots1 x Full/Half-size PCIe Mini card
      slot with mSATA support
      1 x PCI-104 slot supports PCI singal
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O8-bit digital I/O (4-bit input / 4-bit output)
      EthernetDual LAN: Realtek RTL8111E controllers
      I/O Interface5 x RS-232
      1 x RS-422/485
      4 x USB2.0
      1 x 6-pin wafer for PS/2 KB/MS
      I/O Interface
      I/O Interface2 x USB 2.0
      2 x Internal USB 2.0
      5 x RS-232
      1 x RS-422/485
      Power
      Power consumption12V@1.19A (1.86GHz Intel® D2550 with on-board 1066MHz
      1GB SDRAM)
      12V@0.95A (1.6GHz Intel® N2600
      with on-board 1066MHz 1GB
      SDRAM)
      Storage
      Storage2 x SATA 3Gb/s or
      1 x SATA 3Gb/s + 1 x mSATA
      System
      ChipsetIntel® NM10
      CPUIntel® Atom™ D2550 (1.86GHz, dual-core, 1MB cache)
      Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)
      Intel® Atom™ N2800 (1.86GHz, dual-core, 1MB cache)
      CPU SocketOn board
      Memory Max.On-board DDR3 1066MHz 2GB
      SDRAM
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WAFER-CV-D25502-R103.5" SBC with Intel Atom D2550 1.86MHz processor,2GB DDR3 memory down,VGA/LVDS,Dual GbE,PCI/104,USB 2.0,SATA 3GB/s and Audio
      WAFER-CV-N26002-R103.5" SBC with Intel Atom N2600 1.6MHz processor,2GB DDR3 memory down,VGA/LVDS,Dual GbE,PCI/104,USB 2.0,SATA 3GB/s and Audio
    • Package Contents

      • 1 x WAFER-CV-D25502/N26002 single board computer

      • 1 x Audio cable

      • 1 x Power cable 1 x Mini jumper pack

      • 1 x PS/2 KB/MS cable

      • 1 x QIG

      • 1 x RS-232 cable

      • 1 x Utility CD

      • 2 x SATA with 5V output cable kit

      • 1 x One Key Recovery CD
