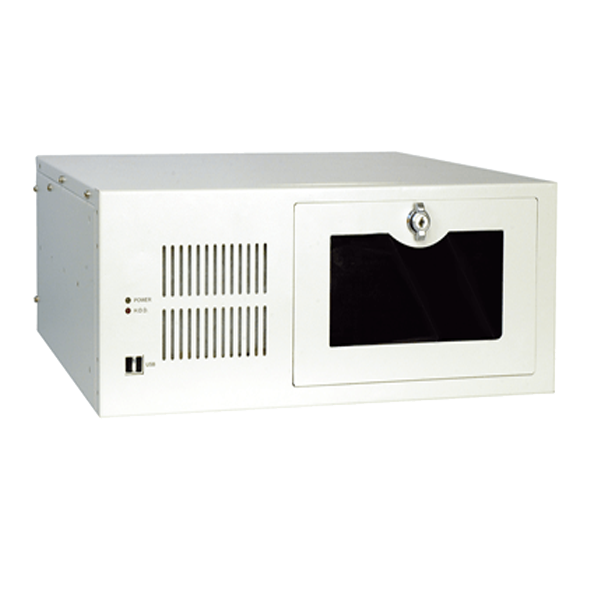

RACK-360G

4U 14-slot Full-size Rackmount Chassis

● Cost-effective, RoHS compatible design

● Flexible drive combinations

● Two USB ports on the front panel

● 12 cm cooling fan with replaceable fan filter

● Lockable door prevents unauthorized access

Spec Item	Description
Form factor
SBC Form Factor	Full-size, slot CPU card
I/O Interface
I/O Openings	2 x COM, 2 x LPT
I/O Ports	2 x USB
Expansion Slots
Expansion Slots	14 slots for RACK-360G 7 slots for RACK-360GATX
System
Cooling method / System Fan	1 x 12 cm
Drive Bays	3 x 5.25” + 1 x 3.5” HDD or 2 x 5.25” + 2 x 3.5” HDD or 2 x 5.25” + 1 x 3.5” HDD + 1 x front accessible 3.5” or 2 x 5.25” + 2 x front accessible 3.5”
Indicator&Buttons
Buttons	Power switch, reset button
Indicators	Power, HDD
Physical Characteristics
Construction	Heavy duty metal
Color
Color	B: Black/W: White
Dimensions
Dimensions	435.5 mm x 431mm x 176 mm
Weight
Weight	11 kg/15.4 kg(Net/Gross)
Environment
Operating Temperature	0°C ~ 50°C
Humidity	10% ~ 90%

Spec Item

Description

Form factor

SBC Form Factor

Full-size, slot CPU card

I/O Interface

I/O Openings

2 x COM, 2 x LPT

I/O Ports

2 x USB

Expansion Slots

14 slots for RACK-360G
7 slots for RACK-360GATX

System

Cooling method / System Fan

1 x 12 cm

Drive Bays

3 x 5.25” + 1 x 3.5” HDD
or 2 x 5.25” + 2 x 3.5” HDD
or 2 x 5.25” + 1 x 3.5” HDD + 1 x front accessible
3.5”
or 2 x 5.25” + 2 x front accessible 3.5”

Indicator&Buttons

Buttons

Power switch, reset button

Indicators

Power, HDD

Physical Characteristics

Construction

Heavy duty metal

Color

B: Black/W: White

Dimensions

435.5 mm x 431mm x 176 mm

Weight

11 kg/15.4 kg(Net/Gross)

Environment

Operating Temperature

0°C ~ 50°C

Humidity

10% ~ 90%

Item No.	Description
RACK-360GBATX-R23/A130B	4U ATX motherboard Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)
RACK-360GB-R23/A130B	4U 14-slot Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)
RACK-360GB-R23/ACE-935AL	4U 14-Slot Rackmount Chassis,USB,Black,W/ACE-935AL-RS PSU(300W),RoHS
RACK-360GWATX-R23/A130B	4U ATX motherboard Rackmount Chassis,White,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)
RACK-360GW-R23/A130B	4U 14-slot Rackmount Chassis,White,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)
RACK-360GW-R23/ACE-935AL	4U 14-Slot Rackmount Chassis,USB,White,W/ACE-935AL-RS PSU(300W),RoHS

Item No.

Description

RACK-360GBATX-R23/A130B

4U ATX motherboard Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)

RACK-360GB-R23/A130B

4U 14-slot Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)

RACK-360GB-R23/ACE-935AL

4U 14-Slot Rackmount Chassis,USB,Black,W/ACE-935AL-RS PSU(300W),RoHS

RACK-360GWATX-R23/A130B

4U ATX motherboard Rackmount Chassis,White,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)

RACK-360GW-R23/A130B

4U 14-slot Rackmount Chassis,White,1x 12cm fan,w/ACE-A130B-R10(300W ATX model)

RACK-360GW-R23/ACE-935AL

4U 14-Slot Rackmount Chassis,USB,White,W/ACE-935AL-RS PSU(300W),RoHS
