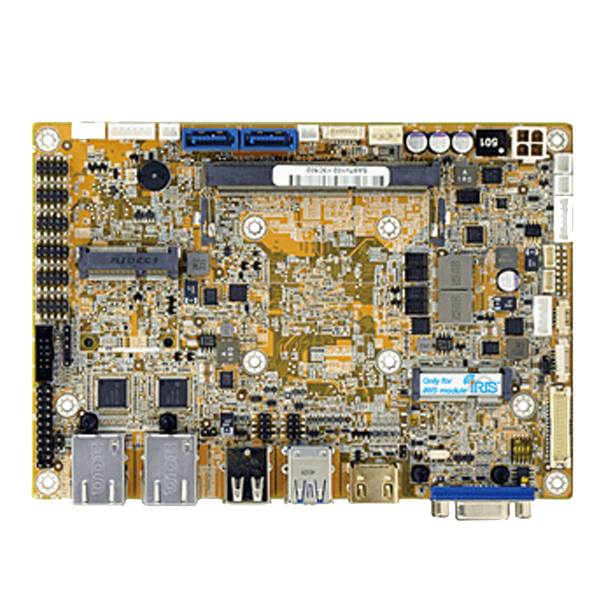

NANO-KBN-i1

EPIC SBC supports AMD® Embedded G-Series SoC

  • Overview

    ● EPIC SBC supports AMD® Embedded G-Series SoC
    ● Dual independent display support
    ● 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB
    ● HD Audio supported by S/PDIF
    ● Support IPMI 2.0 with iRIS-1010 module
    ● COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUAMD® Embedded G-Series ""Steppe Eagle"" SoC
      GX-424CC on-board Soc (2.4GHz, quad-core,
      2MB cache, TDP=25W)
      AMD® Embedded G-Series ""eKabini"" SoC
      GX-415GA on-board Soc (1.5GHz, quad-core,
      2MB cache, TDP=15W)
      AMD® Embedded G-Series ""LX"" SoC
      GX-210KL on-board Soc (1.0GHz, dual-core,
      1MB cache, TDP=4.5W)
      MemoryOne 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered SO-DIMM
      Memory Max.8GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)115 X 165
      Net Weight350g
      Storage
      Storage2 x SATA :6Gb/s with 5V SATA power connector(no RAID)
      I/O Interface
      Display Output1 x VGA :up to 2048x1536@60Hz
      1 x HDMI :up to 3840x2160@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support
      LAN2: Intel® I211-AT PCIe controller
      AudioDescription: Realtek ALC892 HD Audio codec
      1 x S/PDIF :1x4 pin
      1 x Speaker :2x5 pin
      I/O Interface5 x Internal RS-232 :2x5 pin, p=2.0
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe mini Card Slot :Full-Size(support mSATA co-lay SATA port 2)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption12V@1.02A (AMD GX-415GA 1.5GHz CPU
      with 1600 MHz 8 GB DDR3 memory)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      NANO-KBN-i1-4151-R10 EPIC SBC supports AMD® 28nm Quad-Core 1.5GHz (15W) on-board SoC with DVI-I/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio
      NANO-KBN-i1-2101-R10 EPIC SBC supports AMD® 28nm Dual-Core 1.0GHz (9W) on-board SoC with DVI-I/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio
    • Package Contents

      • 1 x NANO-KBN-i1 single board computer with enclosure heatsink

      • 1 x Audio cable

      • 1 x Power cable

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit
