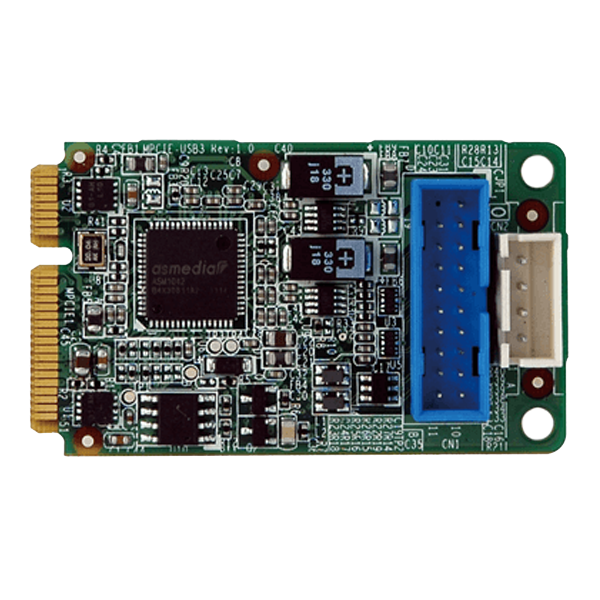

MPCIE-USB3

PCIe Mini U MPCIE-USB3 SB 3.0 Adapter Card

  • Overview

    ● Supports two external USB 3.0 type A ports
    ● USB 3.0 provides up to 5Gbps of transferring rate
    ● Backward compatible with USB 2.0 and USB 1.0/1.1 devices
    ● Fully compliant with USB 3.0 rev 1.0 specifications and Intel® xHCI rev 0.96 specifications, with transfer rates up to 5Gbps
    ● Compliant with PCI Express Mini specification 1.2
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form FactorPCI Express Mini Card
      Physical Characteristics
      Dimensions (LxWxH) (mm)50 X 30
      Net Weight70g
      Power
      Input1 x 4-pin box header
      Power Consumption5V@0.32A
      Power Requirement5V Power Input
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      Humidity5% ~95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
      Card Slot Interface
      PCIeMini card
    • Ordering Info.

      Item No. Description
      MPCIE-USB3-R10 Mini PCI Express USB 3.0 adapter card,RoHs
