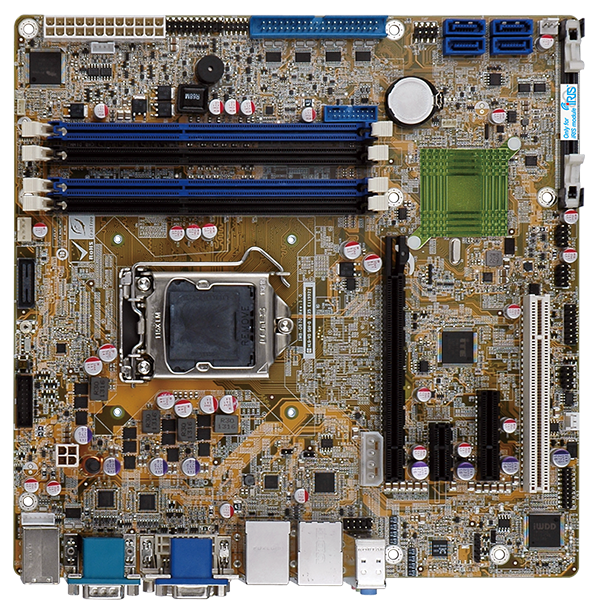

IMB-Q870-i2

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

  • Overview

    ● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR3 1600/1333 MHz supported
    ● Intel® PCIe GbE with Intel® AMT 9.0 support
    ● Support triple display via HDMI, DVI, VGA and iDP
    ● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
    ● USB 3.0 and SATA 6Gb/s supported
    ● IEI jumper-less function
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156E-R11
      Display
      DisplayTriple independent display
      1 x VGA (up to 1920x1200@60Hz)
      1 x DVI-D (up to 2560x1600@60Hz)
      HDMI (up to 2560x1600@60Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCIe x16 slot (Gen 3)
      1 x PCIe x4 slot
      1 x PCIe x1 slot
      1 x PCI slot
      I/O Interface
      AudioRealtek ALC662 HD Audio codec supports 5.1-channel
      3 x Audio jacks (line-out, line-in, mic-in) on rear IO
      1 x Front audio (2x5 pin)
      Digital I/O8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I217LM with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      I/O Interface
      I/O InterfaceKB/MS
      1 x RS-232
      1 x SMBus
      4 x USB 2.0
      2 x Internal USB 3.0
      4 x Internal USB 2.0
      1 x Internal RS-422/485
      4 x Internal RS-232
      1 x I2C
      2 x USB 3.0
      Option
      iRIS1 x iRIS-2400 slot
      Power
      Power consumption3.3V@0.53A, 5V@4.96A, 12V@0.12A, Vcore_12V@3.95A, 5VSB@0.18A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
      System
      ChipsetIntel® Q87
      CPUIntel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      support up to 32 GB
      Storage4 x SATA 6Gb/s (RAID 0/1/5/10 support)
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      IMB-Q870-i2-R10Micro ATX Motherboard supports 22nm LGA1150 Intel Core™ i7/i5/i3/Pentium and Celeron CPU per Intel Q87,DDR3,HDMI/ DVI-D/ VGA / DP,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,Six Serial Ports, Audio, iRIS-2400 and RoHS
    • Package Contents

      • 1 x IMB-Q870-i2 single board computer

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA cable

      • 1 x Utility CD
