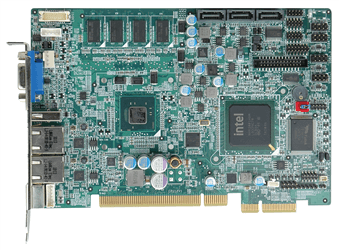

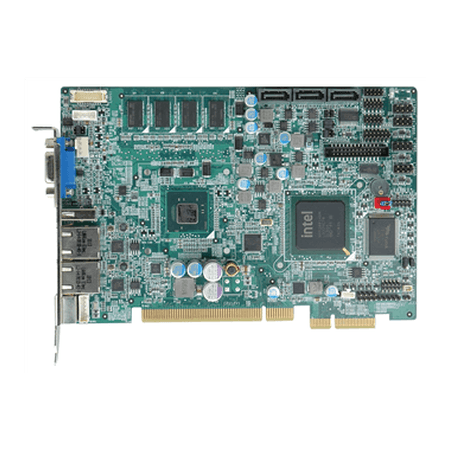

PICOe-PV-D4251/N4551/D5251

Half-size PCIe CPU Card with Intel® Atom™ D425/N455/D525

  • Overview

    ● PCIe CPU card supports four PCIe x1 or one PCIe x4, and four PCI expansions
    ● Intel® Atom™ D525/D425/N455 processor
    ● 1 GB of DDR3 800 MHz SDRAM on board and one expansion SO-DIMM slot support
    ● Supports VGA and 18-bit single-channel LVDS with dual display support
    ● I/O includes three RS-232, one RS-232/422/485, seven USB 2.0 and three SATA 3Gb/s
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion SlotsPCIe signal and PCI signal via golden finger
      I/O Interface
      AudioSupports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit
      Digital I/O8-bit digital I/O (4-bit input, 4-bit output)
      Display1 x VGA (up to 2048 x 1536 @75Hz)
      EthernetLAN1: Realtek RTL8111E GbE controller with ASF
      2.0 support
      LAN2: Realtek RTL8111E GbE controller
      I/O Interface
      I/O Interface6 x Internal USB 2.0
      3 x RS-232
      1 x USB 2.0
      Power
      Power consumption5V@3.38A, 12V@0.54A (Intel® Dual Core
      Atom™ D525 1.80GHz with 1GB DDR3
      800MHz memory on board)
      5V@3.28A, 12V@0.43A (Intel® Single
      Core Atom™ D425 1.80GHz with 1GB
      DDR3 800MHz memory on board)
      5V@3.13A, 12V@0.32A (Intel® Single
      Core Atom™ N455 1.66GHz with 1GB
      DDR3 800MHz memory on board)
      Storage
      Storage1 x CF Type II
      3 x SATA 3Gb/s
      System
      ChipsetIntel® B65
      CPUIntel® Core™ i7/i5/i3/Pentium®/Celeron® processor
      CPU SocketLGA1155
      Memory Max.One 204-pin 800MHz DDR3 SDRAM SO-DIMM
      supported (system max. 4GB for D525/D425, 2GB for
      N455) (compatible w/128MB*8 SDRAM)
      On-board 1 GB DDR3 800 MHz memory
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PICOe-PV-D5251-R11Half-size PCIe CPU card with Intel Atom Dual Core D525 1.80GHz/1MB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
      PICOe-PV-D4251-R11Half-size PCIe CPU card with Intel Atom Single Core D425 1.80GHz/512KB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
      PICOe-PV-N4551-R11Half-size PCIe CPU card with Intel Atom Single Core N455 1.66GHz/512KB L2 cache, DDR3 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB2.0, SATA II and Audio, RoHS
