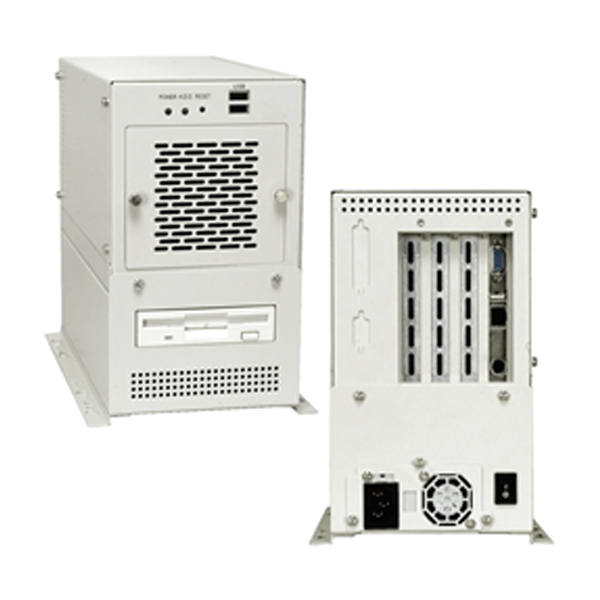

PAC-42G

4-slot Half-size Compact Chassis

» Two USB ports on the front panel
» One 8 cm cooling fan with replaceable filter
» Supports one 3.5” HDD or two 2.5” HDDs

Hardware Spec.

Form factor
SBC Form Factor Half-size, slot CPU cards
I/O Interface
I/O Openings 1 x LPT, 1 x COM
I/O Ports 2 x USB
Expansion Slots
Expansion Slots 4 slots
System
Cooling method / System Fan 1 x 8 cm
Drive Bays 1 x Front-accessible 3.5" and 1 x 3.5" HDD
or 1 x Front-accessible 3.5" and 2 x 2.5" HDD
Indicator&Buttons
Buttons Power switch, reset
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color
Color W: White
Dimensions
Dimensions 269 mm x 140 mm x 230 mm(DxWxH)
Weight
Weight 3.9 kg/6.1 kg(Net/Gross)
Environment
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

PAC-42GHWPX-R11/A618C 4-Slot Half size Chassis,White,1x 8cm fan,with ACE-A618C-RS-R10(180W),RoHS
