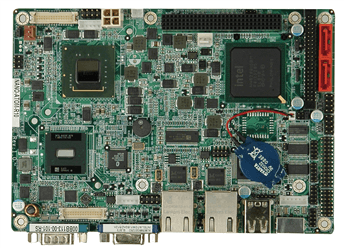

NANO-945GSE

EPIC SBC with Intel® Atom™ Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Intel® Atom™ processor N270 1.6GHz CPU for ultra low voltage fanless support
» Single 12V power input, 5V output for SATA device
» Dual LVDS supports dual independent display
» Support four COM, six USB, two SATA
» Support PCIe Mini card, PCI-104 for expansion
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® 945GSE
Intel® 82801GBM/ICH7M
Memory Max. One 200-pin 533MHz DDR2 SDRAM SODIMM
slot support up to 2GB
CPU Socket On Board
I/O Interface Ethernet
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Audio Audio
5.1 channel audio kit with Realtek ALC655 AC'97 codec
7.1 channel HD Audio kit with Realtek ALC888 codec
supports dual audio stream
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95% non- condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
FSB FSB
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
6 x USB 2.0
3 x RS-232
1 x RS-422/485

Ordering Information

NANO-945GSE-N270W-R20 EPIC SBC with Intel Atom N270 1.6G,VGA/18 bit dual-channel LVDS,Dual GbE,CFII,USB,SATA,-20~70℃,RoHS
NANO-945GSE-N270-R20 EPIC SBC with Intel Atom N270 1.6G,VGA/18 bit dual-channel LVDS,Dual GbE,CFII,USB,SATA,RoHS
