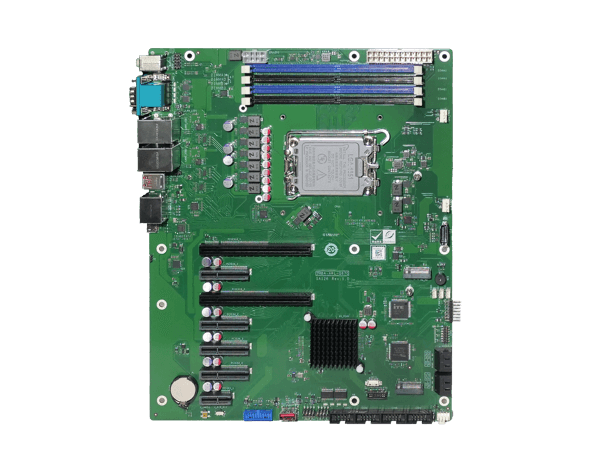

IMBA-ARL-Q870

ATX motherboard supports high-performance Intel® Core™ Ultra Processors (Series 2) processor

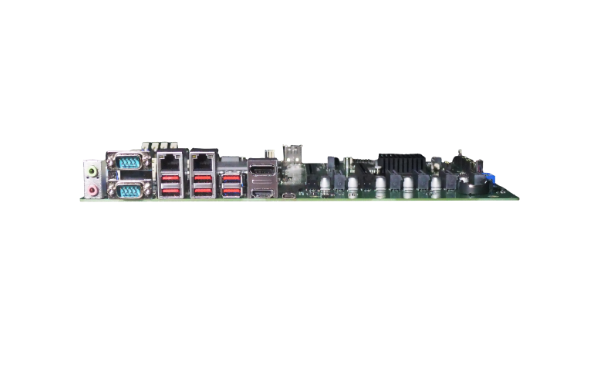

IMBA-ARL-Q870-IO

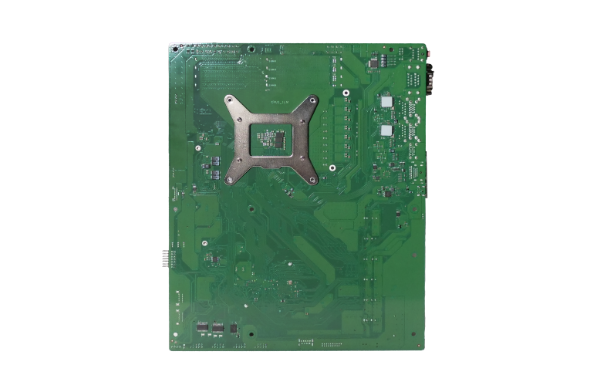

IMBA-ARL-Q870-back

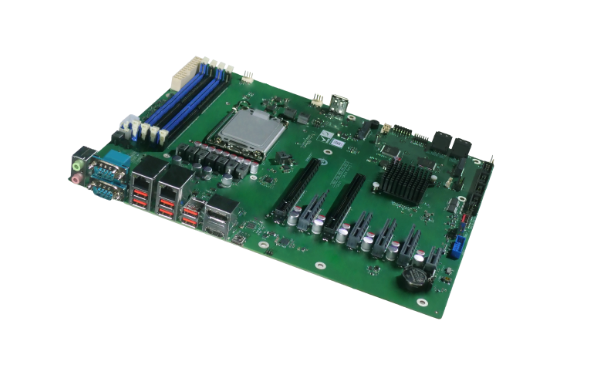

IMBA-ARL-Q870-side
  • IMBA-ARL-Q870-IO
  • IMBA-ARL-Q870-back
  • IMBA-ARL-Q870-side
» High-Performance Intel® Core™ Ultra Processors (Series 2)
» Support four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM supported up to 192GB
» Quad independent display via HDMI™, DP and USB4
» Support Dual Intel® I226V/I226LM 2.5GbE controller
» Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen5 x16 and M.2 M key expansion

Specifications

Hardware Spec.

Form Factor
Form Factor ATX
System
CPU High-Performance Intel® Core™ Ultra Processors (Series 2)
(up to 125W TDP CPU)
Chipset Intel® Q870
Memory Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM
Memory Max. up to 192GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight GW: 1200g / NW: 700g
Storage
Storage 4 x SATA : 6Gb/s (RAID 0/1/5/10 supported)



I/O Interface
Display Output 2 x Display Port -
1 x DP1.4 (up to 4K@60Hz)
1 x DP1.4 (up to 4K@60Hz) internal
1 x HDMI™ : up to 4K@30Hz
1 x USB4 : up to 4K@60Hz
Ethernet 2 x LAN -
LAN1: Intel® I226-LM 2.5GbE controller
LAN2: Intel® I226-V 2.5GbE controller
Audio 1 x HD Audio : Realtek ALC888S HD codec
2 x Audio Jack (Line-out, Mic-in) on rear IO
1 x Analog audio (2x5 pin)
I/O Interface 1 x DIO : 12-bit digital I/O (2x7 pin)
2 x External RS-232/422/485 : RS-485 support AFC
6 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s
4 x Internal RS-232 : 2x5 pin, P=2.54
4 x Internal USB 2.0 : 2x4 pin, P=2.54
2 x Internal USB 3.2 Gen1x1 : 2x10pin, P=2.00 (5Gb/s)
1 x Internal USB 3.2 Gen2x1 : Type-A, 10Gb/s
Expansion 2 x M.2(NGFF) : M Key (2280, PCIe x2) NVMe support
1 x PCIe x1 : PCIe Gen4 x1
2 x PCIe x16 : PCIe x16 (Gen5 x 8)
4 x PCIe x4 : PCIe Gen4 x4
Power
Power Consumption 3.3V@5.21A, 5V@11.59A, 12V@5.68A, 5Vsb@0.95A
(Intel® Ultra 9 285 with DDR5 6400MHz CUDIMM 16GB memory)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

IMBA-ARL-Q870-R10 ATX motherboard supports LGA1851 Intel® 15th Generation Ultra™ processor, DDR5, Quadruple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

  • 1 x IMBA-ARL-Q870 single board computer
  • 1 x I/O Shielding
  • 2 x SATA cable
  • 1 x QIG
