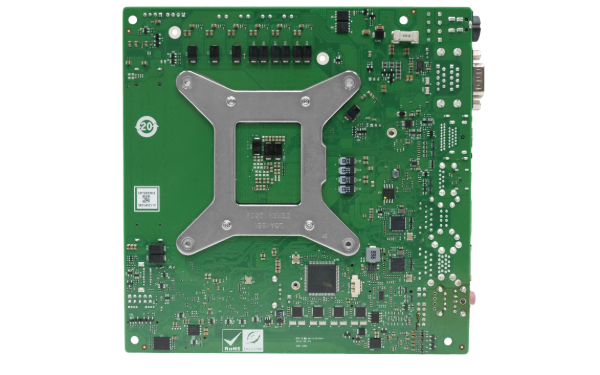

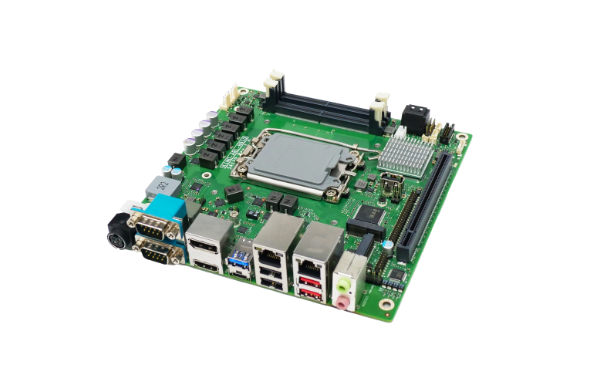

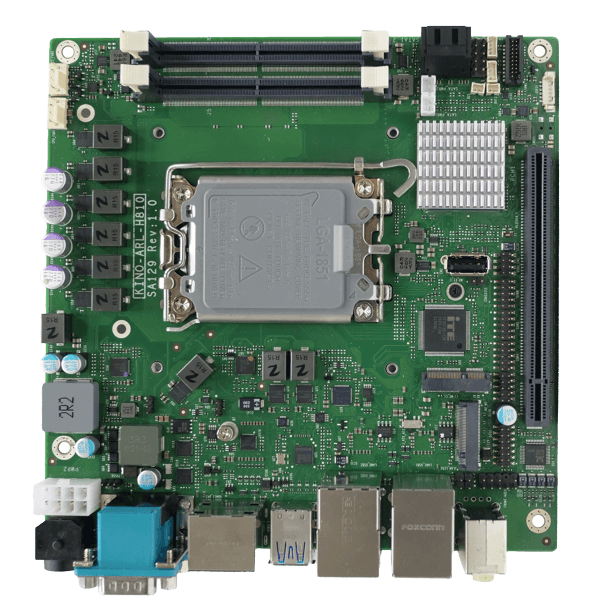

KINO-ARL-H810
» mini-ITX SBC supports high-Performance Intel® Core™ Ultra Processors (Series 2)
» Two 262-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered SO-DIMM
» Triple independent display via HDMI™, USB4 and DP
» Support dual Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x16, M.2 M key and M.2 E key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
|---|---|
| CPU | LGA1851 socket supports high-Performance Intel® Core™ Ultra Processors (Series 2) (up to 65W TDP CPU) |
| Memory | Two 262-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered SO-DIMM (CSODIMM support 6400 MHz) |
| Memory Max. | up to 96GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
|---|---|
| Storage | 2 x SATA : 6Gb/s |

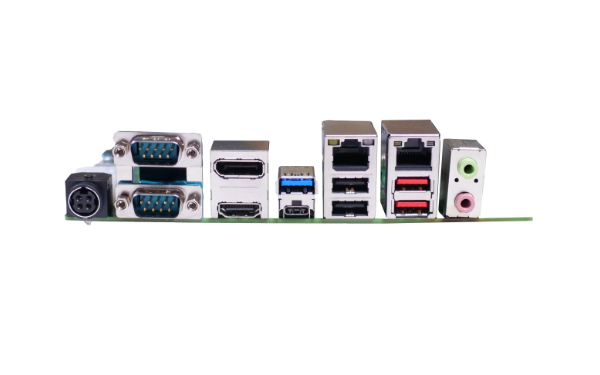

| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : 1.4 (up to 4K @60Hz) |
| 1 x HDMI™ : 2.0 (up to 4K @60Hz) | |
| 1 x USB4 : up to 4k @60Hz | |
| Ethernet | 2 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Audio | HD Audio : Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 | |
| 2 x External USB 2.0 : Type-A | |
| 1 x External USB 3.2 Gen1x1 : Type-A, 5Gb/s | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C 1x4 pin | |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 3 x Internal USB 2.0 - 2 x USB 2.0 (2x4 pin, P=2.0) 1 x USB 2.0 (Type A) 90° |
|
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
|---|---|
| TPM | 2x10 pin |
| Power | |
|---|---|
| Power Consumption | 12V@11.14A (Intel® Core Ultra5 245 with 32 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| Power Supply | 12V DC input (DC jack) Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 M key (2280,PCIe Gen4 x4) 1 x M.2 E key (2230 ,PCIe Gen4 x1 &USB 2.0) for wifi/BT |
