- Rugged Embedded System
- ...

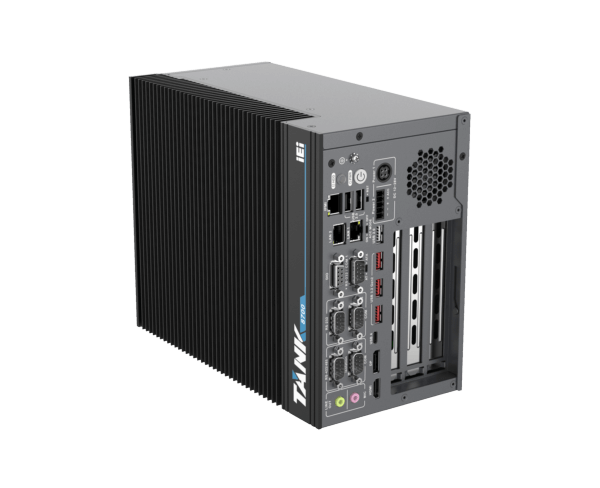

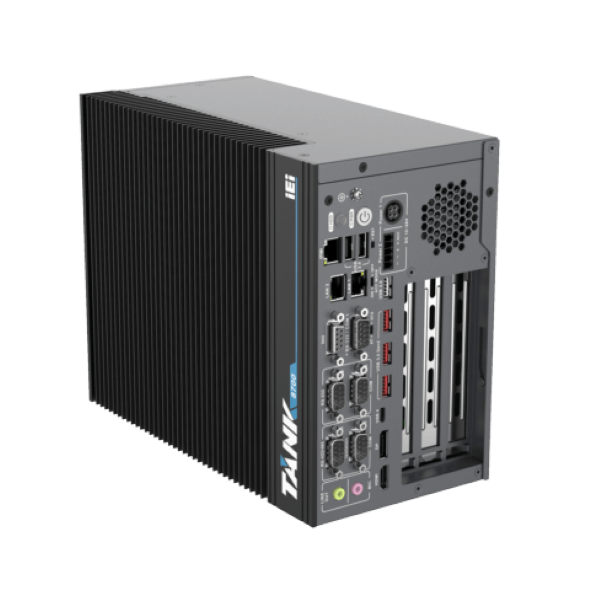

TANK-8700-MPHX
» Supported CPUs:
AMD Ryzen™ 7000/8000 Series Mobile Processor
AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple M.2 expansions and PCIe expansions
» Three independent display
» Support IPMI remote management
» CE/FCC compliant
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
● CPU: AMD Ryzen™ 7000/8000 Series Mobile Processor AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W) AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W) AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W) ● Chipset: SoC ● System Memory: 2 x SO-DIMM DDR5 5600 (16GB pre-installed) (up to 96GB) ● Power: DC Jack: 12 ~ 28V DC ● Terminal Block: 12 ~ 28V DC (with ACC Mode) ● Consumption: 19V@3.79 A (AMD Ryzen™ 9 7940HS with 8 GB memory) |
| I/O Interface | |
| I/O Ports |

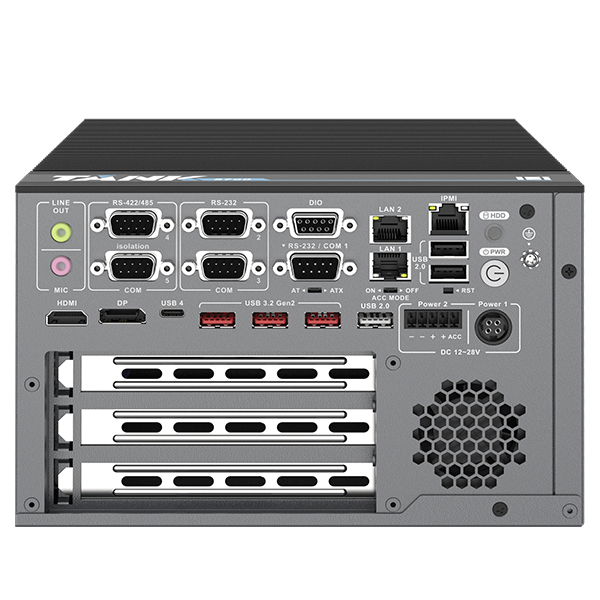

● USB: 3 x USB 3.2 Gen2 3 x USB 2.0 ● Ethernet: 2 x 2.5 GbE by Realtek 8125B controller 1 x RJ45 by M.2 IRIS2 Module ● COM Port: 2 x RS-422/485 (with 2K isolation) (DB9) 3 x RS-232 (DB9) ● Digital I/O: 8-bit (4-in/4-out) DB9 (Female) ● Display: 1 x HDMI 1 x DP++ 1 x USB4 (Display + USB 3.2 Gen2) ● Audio: 1 x Mic 1 x Line-out ● TPM: 1 x 20pin TPM connector (Optional TPM-IN03 module) ● Watchdog Timer: Programmable 1 ~ 255 sec/min |
| Expansion Slots | |
| Expansion Slots |
● M.2: 1 x M.2 M key (2280, PCIe Gen4 x2) 1 x M.2 A key (2230, PCIe Gen3 x1 & USB 2.0) 1 x M.2 B Key (3042/52/80, PCIe Gen3 x1 or support IRIS2 module) ● Backplane: 1 x PCIe Gen4 x8 1 x PCIe Gen3 x4 1 x PCIe Gen3 x1 (Only supports 3A SKU) 1 x PCI (Only supports 3B SKU) |
| System | |
| Cooling method / System Fan |

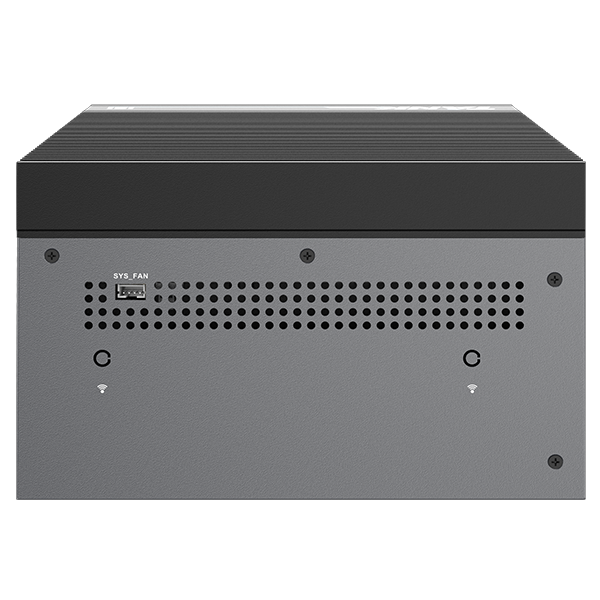

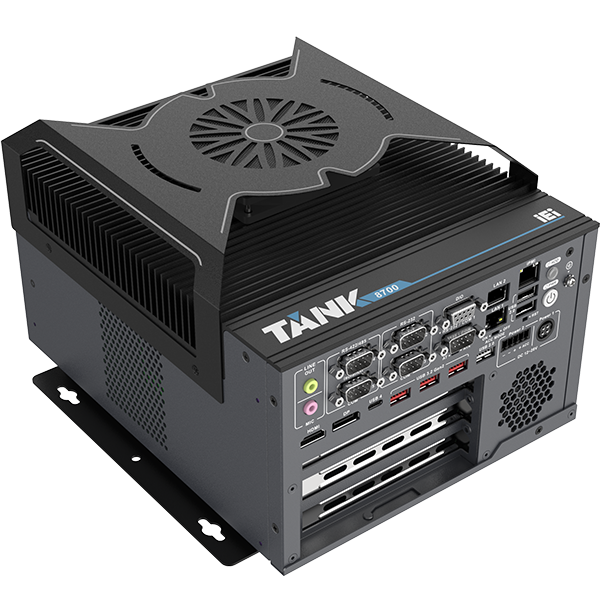

Fanless 4-pin external system fan connector |
| Drive Bays | 2 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x Reset button 1 x AT/ATX switch |
| Indicators |
1 x Power LED (green) 1 x HDD LED (yellow) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black C + Iron Gray |
| Dimensions | |
| Dimensions | 254.4 x 205 x 127.2 |
| Weight | |
| Weight | 3.96 kg / 5.5 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (With SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (With SSD) |
| Safety & EMC | CE/FCC compliant |
| OS Compatible | |
| OS Compatible | Microsoft Windows 10 / Windows 11, Linux |
Ordering Information
| TANK-8700-MPHX-89AD-3B-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS |
|---|---|
| TANK-8700-MPHX-89AD-3A-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1,HDMI/DP/USB4, 12-28V DC, RoHS |
| TANK-8700-MPHX-87AD-3B-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28VV DC, RoHS |
| TANK-8700-MPHX-87AD-3A-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS |
| TANK-8700-MPHX-85AD-3B-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS |
| TANK-8700-MPHX-85AD-3A-R10 | Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS |
