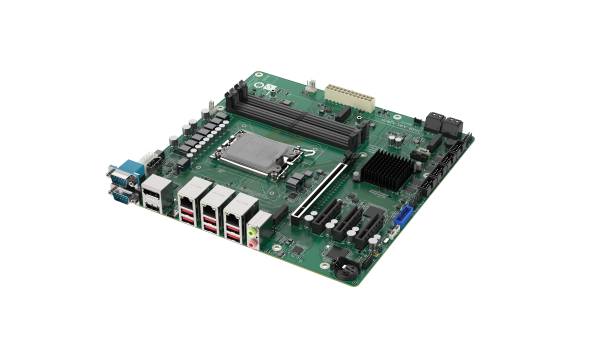

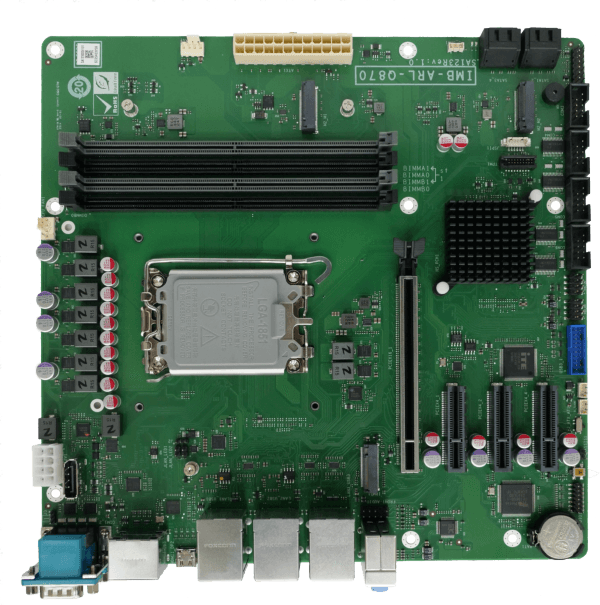

IMB-ARL-Q870
1. high-Performance Intel® Core™ Ultra Processors (Series 2)
2. Support four 288-pin 5600 MHz Dual-Channel DDR5 Clocked Unbuffered DIMM (CUDIMM) up to 192GB
3. Support dual Intel® 2.5GbE controller
4. Support PCIe Gen5 x16, PCIe Gen4 x4, 2 x M.2 M key and M.2 B key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Micro-ATX |
| System | |
| CPU | high-Performance Intel® Core™ Ultra Processors (Series 2) |
| Memory | Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Clocked Unbuffered DIMM (CUDIMM) DIMMs |
| Memory Max. | 192GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s (RAID 0/1 supported) |

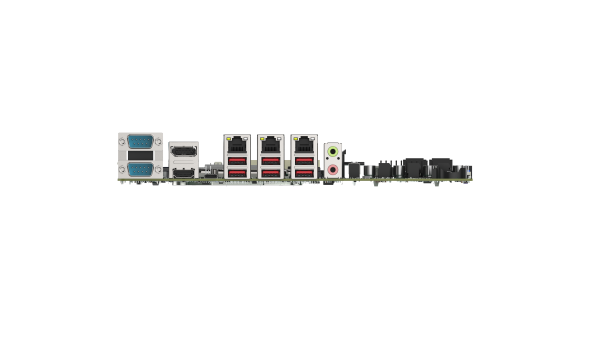

| I/O Interface | |
| Display Output |
1 x DP++ - DP1.4 (up to 4K @60Hz) DP1.4 (up to 4K @60Hz) internal |
| 1 x HDMI™ : HDMI 1.4 (up to 4K @60Hz) | |
| 1 x USB4 : 40Gb/s speed, support DP 4096 x 2304 @60Hz, up to 15W per port | |
| Ethernet |
2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 : RS-485 support AFC | |
| 6 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 2 x Internal USB 3.2 Gen1x2 : 2x10 pin, P=2.00, 5Gb/s | |
| Expansion |
2 x M.2(NGFF) - 2 x M.2 M Key (2280, PCIe x4) NVMe support 1 x M.2 B key for IRIS2-2600 |
| 1 x PCIe x16 : PCIe Gen5 x16 | |
| 3 x PCIe x4 : PCIe Gen4 x4 | |
| Power | |
| Power Consumption |
3.3V@5.05A, 5V@11.94A, 12V@5.79A, 5VSB@0.6A (Intel® Core™ Ultra 9 285 with DDR5 5600MT/s U-DIMM 48GB memory) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
Ordering Information
| IMB-ARL-Q870-R10 | micro-ATX motherboard supports LGA1851 Intel® 15th Generation Ultra™ processor, DDR5, Quadruple independent displays, triple LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
