HUK-AADLP

COM-HPC Client size A Module, Intel® Alder Lake P/Raptor Lake-P, with 16GB LPDDR5 memory on board default, Dual 2.5 GbE, PCIe 3.0, SATA 6Gb/s, USB 3.2 gen 2, RoHS

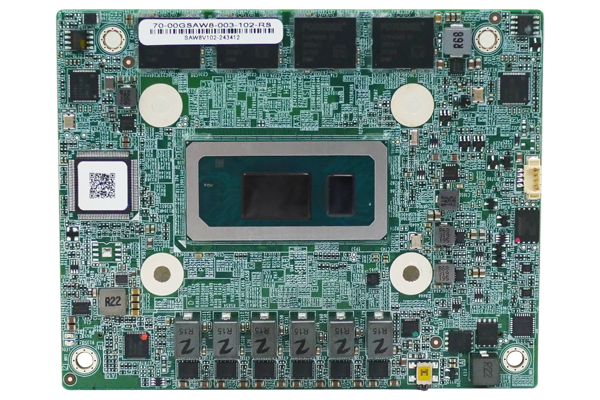

HUK-AADLP

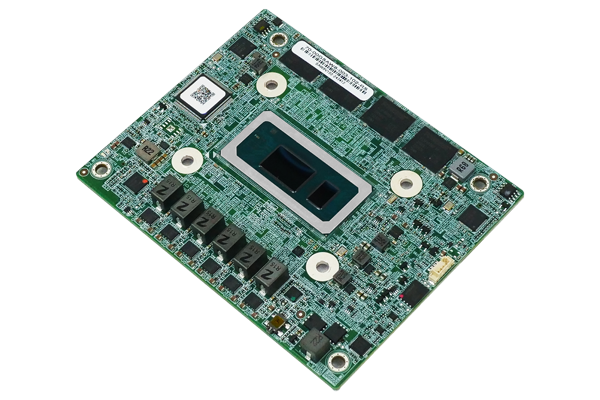

HUK-AADLP-left

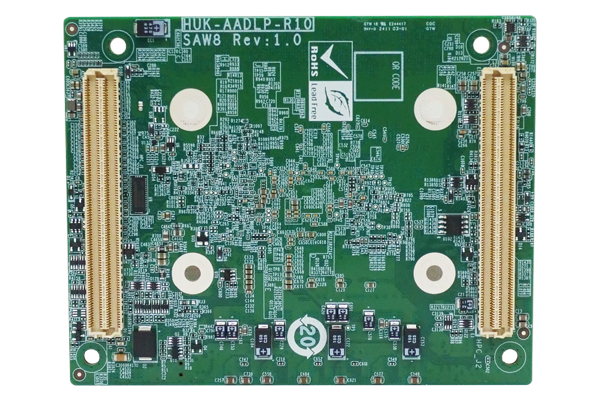

HUK-AADLP-back
  • HUK-AADLP
  • HUK-AADLP-left
  • HUK-AADLP-back
» 12th/13th Intel® mobile Alder Lake-P/Raptor Lake-P Core I  on board SoC
» COM-HPC Size A
» Onboard LPDDR5x-4800MHz 16GB, up to 32GB
» DP/HDMI/eDP
» 3 x PCIe Gen3 x4
» 2 x PCIe Gen3 x1

Specifications

Hardware Spec.

Form Factor
Form Factor COM-HPC SIZE A
System
CPU Intel® Alder Lake-P/Raptor Lake-P SoC
Intel® Celeron® 7305 (up to 1.1 GHz, 5-core, TDP=15W)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, TDP=28W)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, TDP=28W)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, TDP=28W)
Memory Onboard LPDDR5x-4800MHz 16GB
Memory Max. 32GB
Cooling method / System Fan 1 x CPU FAN connector
Physical Characteristics
Dimensions (LxWxH) (mm) 95 x 120mm
Storage
Storage 2 x SATA : signal to baseboard, 6Gb/s
I/O Interface
Display Output 4 x Display Port : 3 x DDI and 1 x eDP signals to baseboard
Ethernet 2 x LAN : PCIe 2.5 GbE with Intel i226-LM/i226-V signal to baseboard
I/O Interface 1 x GPIO : 12 Bit GPIO signal to baseboard
1 x I²C : 4-pin wafer signal to baseboard
2 x UART : signal to baseboard
12 x USB -
8 x USB 2.0 signals to the baseboard
4 x USB 3.2 Gen2 signals to the baseboard
Expansion 2 x PCIe x1 : signals to the baseboard
3 x PCIe x4 : signals to the baseboard
Power
Power Supply ATX 12V Power Supply
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -30°C ~ 70°C

Ordering Information

HUK-AADLP-i7D-R10 COM-HPC Client size A Module,Intel® Alder Lake P i7-1260P, with 16GB LPDDR5 memory on board default, Dual 2.5 GbE, PCIe 3.0 , SATA SATA 6Gb/s, USB 3.2 gen 2, RoHS
HUK-AADLP-i5D-R10 COM-HPC Client size A Module,Intel® Alder Lake P i5-1240P, with 16GB LPDDR5 memory on board default,Dual 2.5 GbE, PCIe 3.0 , SATA SATA 6Gb/s, USB 3.2 gen 2, RoHS
HUK-AADLP-i3D-R10 COM-HPC Client size A Module,Intel® Alder Lake P i3-1220P, with 16GB LPDDR5 memory on board default, Dual 2.5 GbE, PCIe 3.0 , SATA SATA 6Gb/s, USB 3.2 gen 2, RoHS
HUK-AADLP-CD-R10 COM-HPC Client size A Module,Intel® Alder Lake P Celeron 7305, with 16GB LPDDR5 memory on board default, Dual 2.5 GbE, PCIe 3.0 , SATA SATA 6Gb/s, USB 3.2 gen 2, RoHS

Package Contents

Package Content

  • 1 x HUK-AADLP single board computer

  • 1 x Heatsink cooler module

  • 1 x QIG
