- Industrial Monitor
- ...

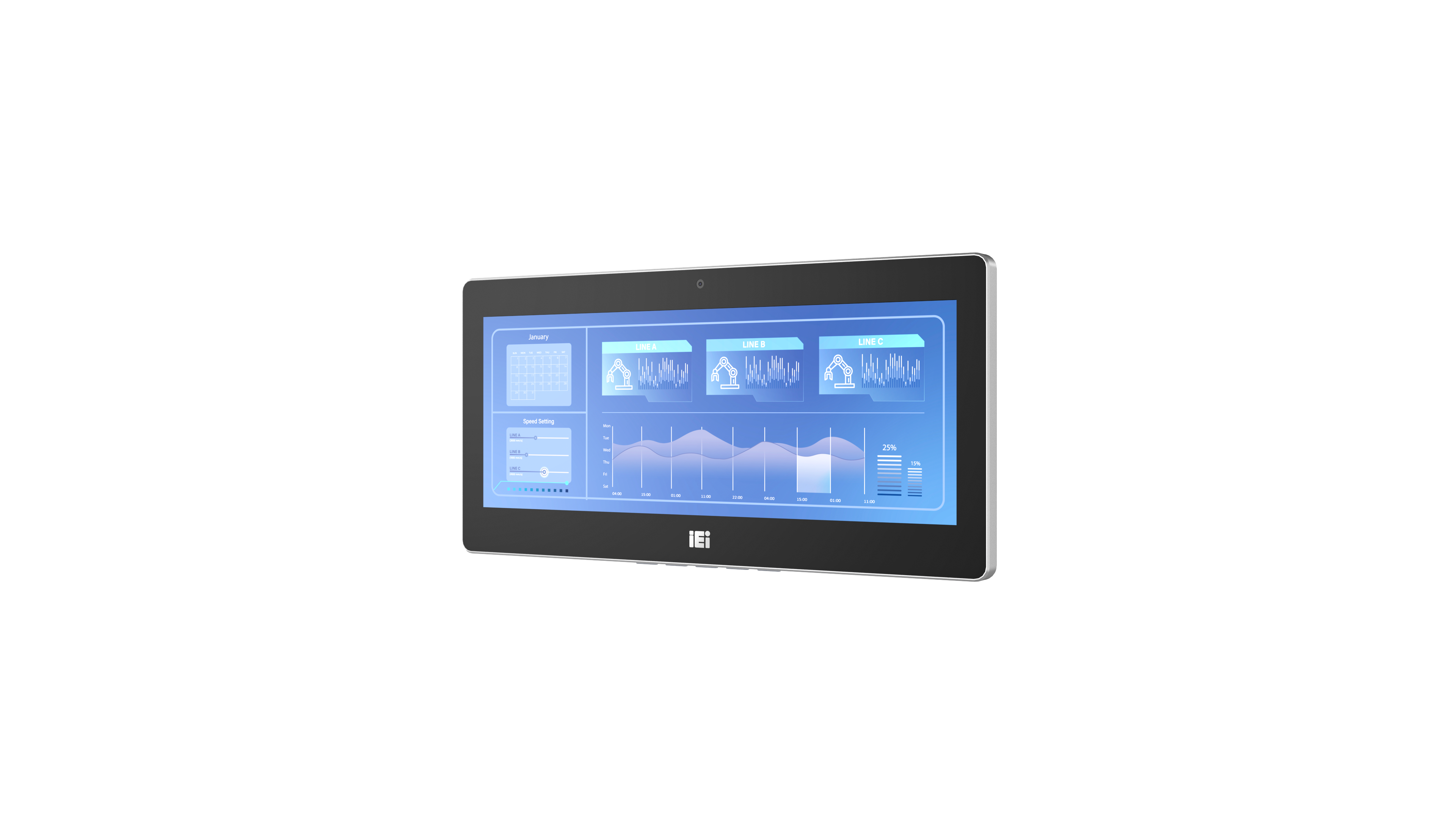

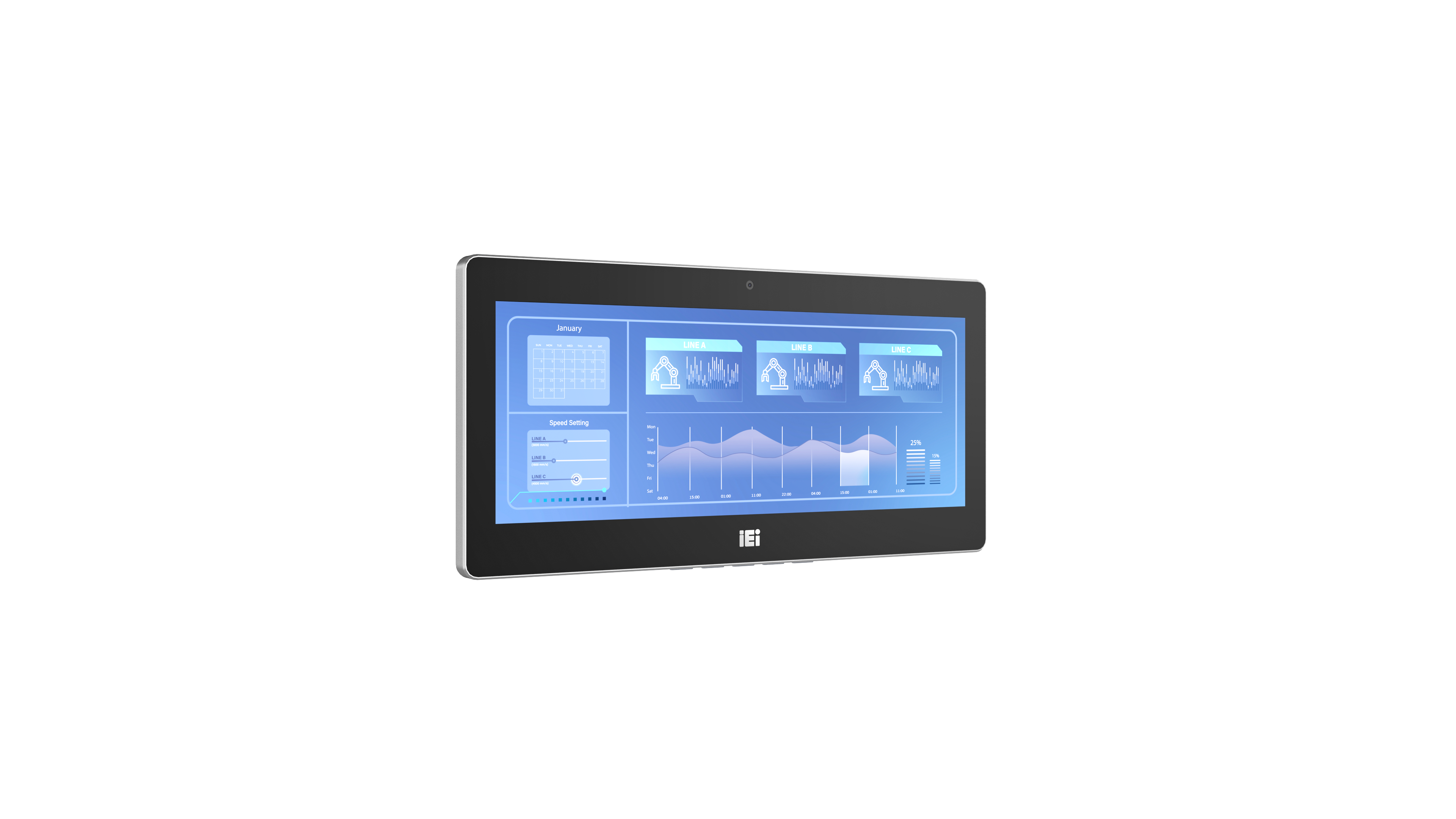

DM2-UW123
» Front OSD, easy access for setting adjustment
» Speakers positioned at the front, ensuring clear sound delivery even in panel mount
» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition
» USB 3.2 Gen1 Type-A supports 10W
» IP65 compliant front panel with aluminum frame
» Anti-glare and anti-UV PCAP
Hardware Spec.
Display | |
---|---|
LCD Size | 12.3” (8:3) |
Brightness(cd/m2) | 850 |
Max Resolution | 1920 x 720 |
Contrast Ratio | 1000:1 |
Backlight MTBF(hrs) | 30000 |
I/O Interface | |

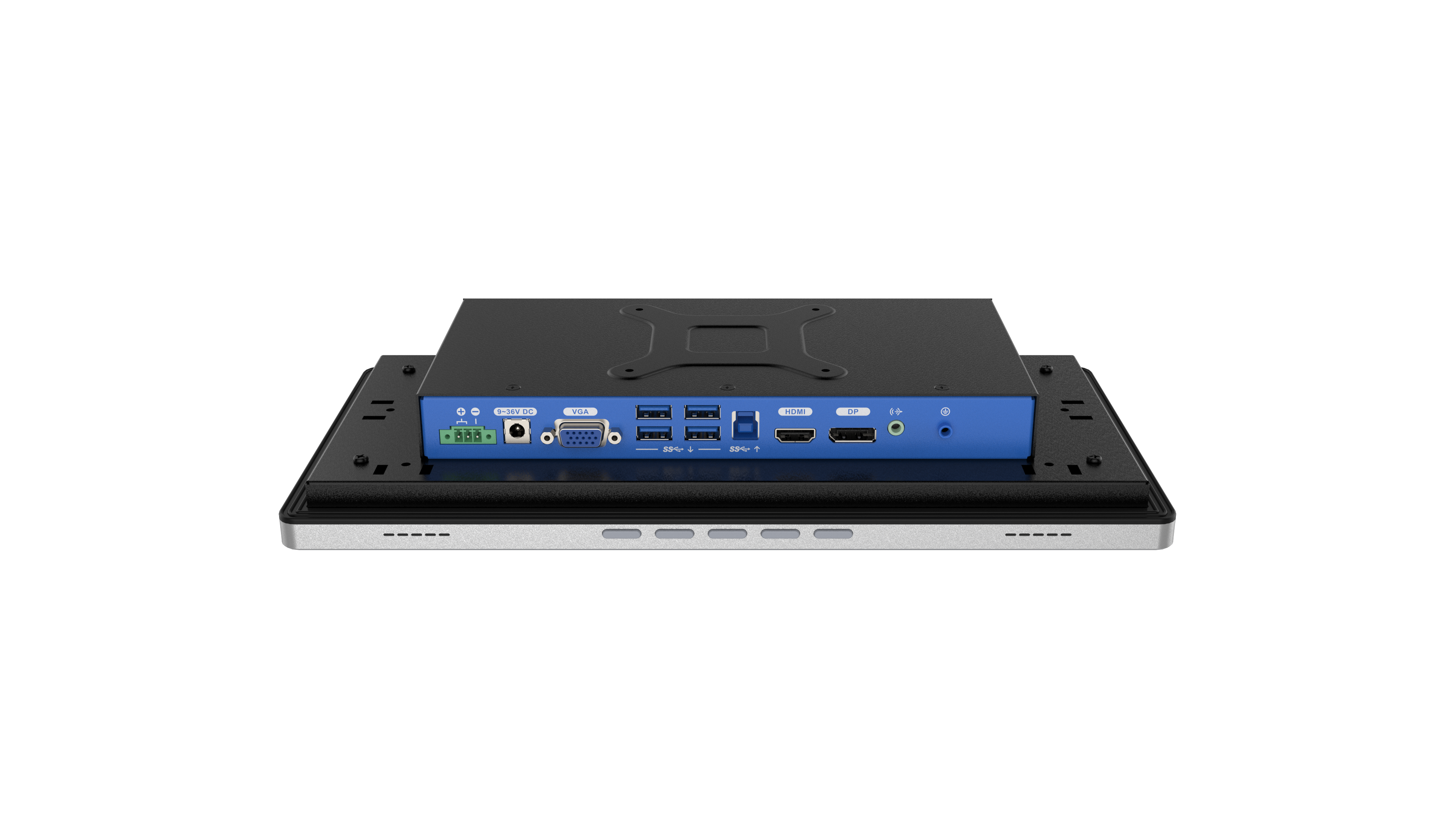

I/O Ports |
1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.1 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
Power | |
Power adapter | 12V DC |
Environment | |
Operating Temperature | -20°C ~ 60°C |
Humidity | 10% to 95%@40°C (non-condensing) |
Storage Temperature | -20°C ~ 70°C |
IP Level | IP 65 compliant front panel |
Physical Characteristics | |
Color | Black + Silver |
Dimensions (LxWxH) (mm) | 326.60 x 160.60 x 49.40 |
Cutout Dimensions | 310.80 x 141.00 |
LCD | |
LCD Color | 16.7M |
Viewing Angle (H-V) | 170°/170° |
Touch | |
Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
Touch Controller | Capacitive:litek |
Ordering Information
DM2-UW123J-R10 | 12.3" 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
---|---|
DM2-UW123JL-R10 | 12.3" 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
Package Contents
Package Content |
|
---|
