DM2-W101

10.1” Latest Generation Industrial Monitor

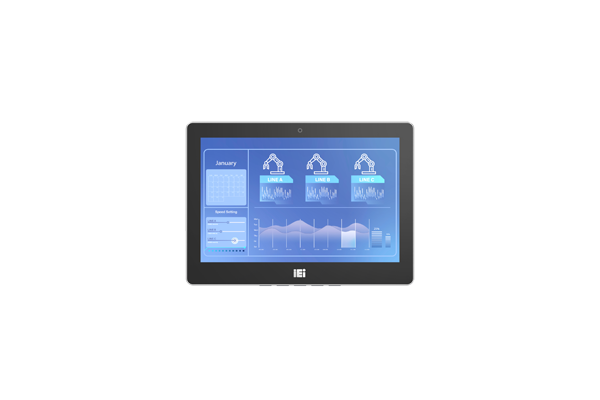

front side
DM2-W101 Right Side
DM2-W101 Left Side
DM2-W101 IO
  • front side
  • DM2-W101 Right Side
  • DM2-W101 Left Side
  • DM2-W101 IO
» Front OSD, easy access for setting adjustment
» Speakers positioned at the front, ensuring clear sound delivery even in panel mount
» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition
» USB 3.2 Gen1 Type-A supports 10W
» IP65 compliant front panel with aluminum frame
» Anti-glare and anti-UV PCAP

Hardware Spec.

Display
LCD Size 10.1” (16:10)
Brightness(cd/m2) 400
Max Resolution 1280 x 800
Contrast Ratio 800:1
Backlight MTBF(hrs) 20000
I/O Interface
I/O Ports 1 x VGA (DB-15)
1 x HDMI
1 x DisplayPort1.1
1 x USB 3.2 Gen1 Type-B
4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without)
1 x Line out
1 x 9V-36V DC jack
1 x 3-pin terminal block
Power
Input 9V ~ 36V DC
Environment
Operating Temperature -20°C ~ 60°C
Humidity 10% to 95%@40°C (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level IP 65 compliant front panel
Physical Characteristics
Color Black
Dimensions (LxWxH) (mm) 251 x 180.95 x 49.30
Cutout Dimensions 241.80 x 157.80
LCD
LCD Color 16.7M
Viewing Angle (H-V) 178°/178°
Touch
Touch Screen 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)
Touch Controller Capacitive:litek

Ordering Information

DM2-W101G-R10 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W101GL-R10 10.1" 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10

Package Contents

Package Content
  • 1 x DM2-W101

  • 1 x USB-touch Cable

  • 1 x 3-pin Terminal Block

  • 4 x VESA Screws

  • 1 x Panel Mount Kit
