19100-000318-00-RS

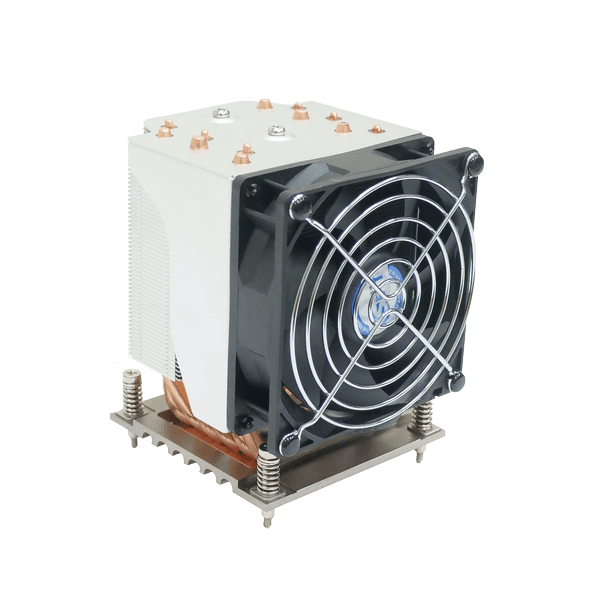

LGA1200 CPU cooler, RoHS

High performance thermal solutions

Hardware Spec.

General
Operating temperature 0°C ~ 50°C
Description
Description For special models: IMBA-Q470 & IMBA-Q471
CPU Solution
CPU Solution Intel® Core™ i9/ i7/ i5/ i3
Socket Solution
Socket Solution LGA1200
Dimensions
Dimensions 103 x 95 x 127 mm
Material
Material Al
Bearing Type
Bearing Type Two-Ball
Capability (Watt)
Capability (Watt) 125 W
Fan Speed (RPM)
Fan Speed (RPM) 3600
Noise Level (dBA)
Noise Level (dBA) 44
Life Expectancy (hrs)
Life Expectancy (hrs) 70000
Weight
Weight 380 g
Key Features
Key Features LGA1200 CPU cooler, RoHS

Ordering Information

19100-000318-00-RS SAO8;COOLER MODULE/Heat Pipe;HEATSINK:96.5*91.4*119.5mm,FAN:92*92*25.2mm;STANDARD;00;HF-XFWD-00630-2202;CU BASE+AL FIN+PIPE*6+M3 SCREW*4+GREASE;DC FAN:12V,3600RPM,2510-4P,L=180mm;Everflow;F129025BUAFW30aR;CCL;RoHS
