KINO-CV-D25501/N26001

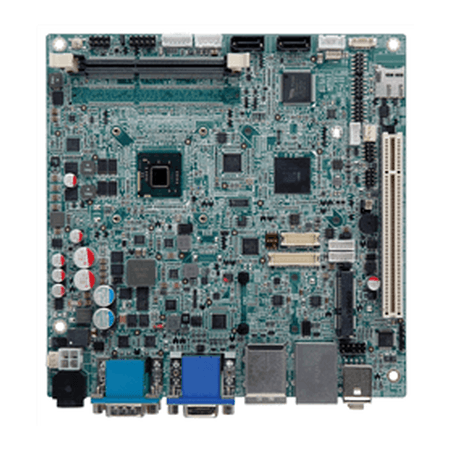

Mini-ITX SBC with Intel® D2550/N2600 processor

  • Overview

    ● Mini-ITX form factor with Intel® D2550/N2600 dual-core processor supports DDR3/DDR3L (1.35V) memory
    ● Wide range 9V ~ 28V DC input
    ● Flexible VGA, dual LVDS and HDMI with dual-display support
    ● Complete I/O: six USB 2.0, two USB 3.0, two SATA 3Gb/s, six COM, audio and mSATA SSD capable
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerHeatsink
      Display
      DisplayDual display supported
      1 x VGA
      1 x Single-channel 18-bit
      (N2600)/24-bit LVDS2 (D2550)
      1 x 24-bit dual-channel LVDS
      1 x HDMI
      Environment
      Humidity5% ~ 95%, noncondensing
      Operating Temperature-20°C ~ 60°C with free air, -20°C ~ 70°C
      with force air for D2550 processor
      -20°C ~ 70°C with free air, -20°C ~ 75°C
      with force air for N2600 processor
      Expansion Slots
      Expansion Slots1 x PCIe Mini Card Slot
      1 x PCI
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O8-bit digital I/O
      EthernetDual LAN: Realtek RTL8111E PCIe GbE
      controller with ASF 2.0 support
      I/O Interface5 x RS-232
      1 x RS-422/485
      6 x USB 2.0
      2 x USB 3.0
      1 x TPM connector (2x10 pin)
      1 x KB/MS by 6-pin header
      I/O Interface
      I/O Interface6 x USB 2.0
      5 x RS-232
      1 x RS-422/485
      2 x USB 3.0
      Power
      Power consumption12V@2.8A (1.86GHz Intel® D2550 CPU
      with DDR3 1333MHz 4GB DIMM)
      12V@2.4A (1.6GHz Intel® N2600 CPU
      with 1333MHz 2GB DDR3 DIMM)
      System
      ChipsetNM10
      CPUIntel® Atom™ Processor D2550
      1.86GHz
      Intel® Atom™ Processor N2600 1.6GHz
      CPU SocketOn Board
      Memory Max.1 x 204-pin, Max.4GB, 1066 MHz DDR3/
      DDR3L (1.35V) SO-DIMM (D2550)
      1 x 204-pin, Max.2GB, 800 MHz DDR3/
      DDR3L (1.35V) SO-DIMM (N2600)
      Storage2 x SATA 3Gb/s or
      1 x SATA 3Gb/s +
      1 x mSATA
      1 x microSD slot (bootable)Realtek ALC662 HD Audio codec
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      KINO-CV-D25501-R10Mini ITX SBC with Intel Atom D2550 1.86 G Hz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS
      KINO-CV-N26001-R10Mini ITX SBC with Intel Atom N2600 1.6 G Hz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS
      KINO-CV-N28001-R10Mini ITX SBC with Intel Atom N2800 1.86 G Hz,DDR3,VGA/HDMI/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS
    • Package Contents

      • 1 x KINO-CV-D25501/N26001 single board computer 1 x Mini jumper pack

      • 1 x Dual-port USB cable 1 x One Key Recovery CD

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA with 5V output cable Kit

      • 1 x Utility CD
