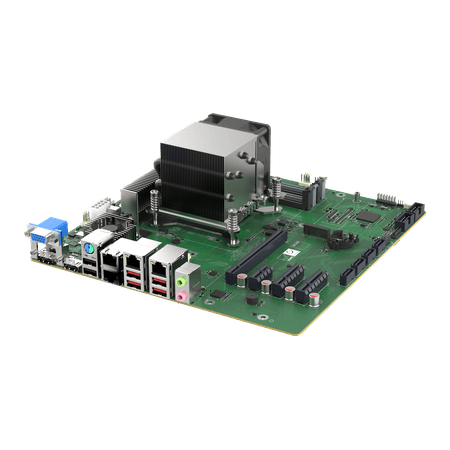

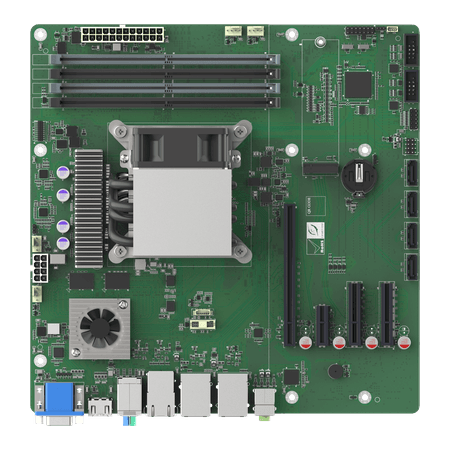

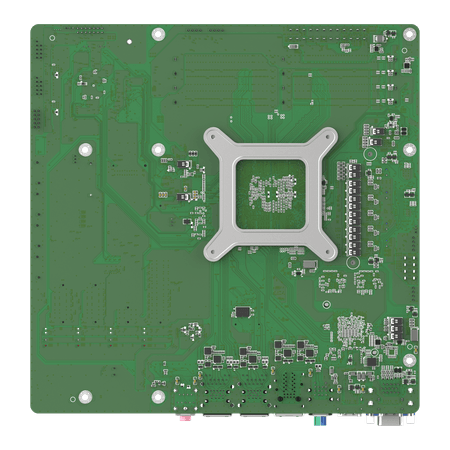

IMB-HG4
» Supports Hygon 3400 series Processor
» Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, ECC supported
» Support quad Motorcomm YT6801 GbE controller
» Support PCIe Gen5 x16, PCIe Gen4 x4, PCIe Gen4 x1 and M.2 M key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Micro-ATX |
| System | |
|---|---|
| CPU | Hygon 3400 series |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, ECC supported |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x GPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
|---|---|
| Storage | 4 x SATA : 6Gb/s |

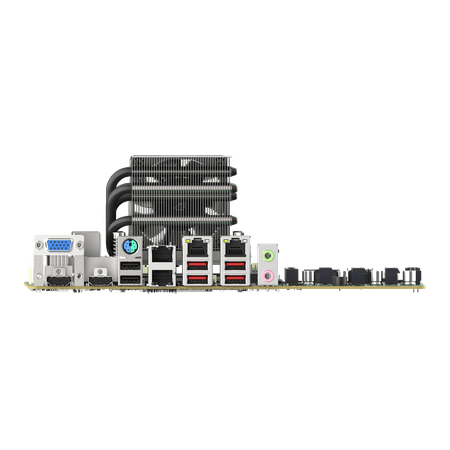

| I/O Interface | |
|---|---|
| Display Output | 2 x HDMI™ (3840X2160@30Hz) |
| 1 x VGA (1920x1080@60Hz) | |
| Ethernet | 4 x LAN - LAN1: YT6801 1GbE controller LAN2: YT6801 1GbE controller LAN3: YT6801 1GbE controller LAN4: YT6801 1GbE controller |
| Audio | 1 x Line out |
| 1 x Mic | |
| I/O Interface | 1 x DIO : 8-bit digital I/O (2x5 pin) |
| 2 x External USB 2.0 (Type-A) | |
| 4 x External USB 3.2 Gen2x1 (Type-A, 10Gb/s) | |
| 1 x I²C (1x4 pin) | |
| 2 x Internal RS-232/422/485 (2x5 pin, P=2.54) | |
| 2 x Internal USB 2.0 (2x4 pin, P=2.54) | |
| 1 x PS/2 | |
| Expansion | 1 x M.2(NGFF) : M Key 2280 (PCIe Gen4 x2 Signal) |
| 1 x PCIe x1 : Gen4 x1 | |
| 1 x PCIe x16 : Gen5 x16 | |
| 2 x PCIe x4 : Gen4 x4 | |
| Power | |
|---|---|
| Power Consumption | 3.3V@3.28A,5V@8.96A, 12V@10.53A, 5Vsb@0.02A (Hygon C86-4G 3490, with DDR5 4800MHz U-DIMM 32GB ) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Watchdog Timer | |
|---|---|
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
Ordering Information
| IMB-HG4-3490-R10 | micro-ATX motherboard supports Hygon 3490 processor, DDR5, Dual independent displays, quad LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-HG4-3480-R10 | micro-ATX motherboard supports Hygon 3480 processor, DDR5, Dual independent displays, quad LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-HG4-3450E-R10 | micro-ATX motherboard supports Hygon 3450E processor, DDR5, Dual independent displays, quad LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-HG4-3430E-R10 | micro-ATX motherboard supports Hygon 3430E processor, DDR5, Dual independent displays, quad LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
