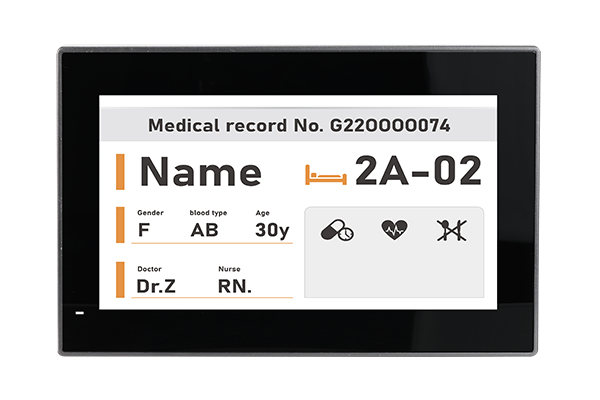

Medical Panel PC

IASO-W07A-N6210​ Right side
IASO-W07A-N6210​ Left side
IASO-W07A-N6210​ IO
  • IASO-W07A-N6210​
  • IASO-W07A-N6210​ Right side
  • IASO-W07A-N6210​ Left side
  • IASO-W07A-N6210​ IO
» Intel® Celeron® Processor N6210
» PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
» 6 ports USB 3.2 Gen1

Intel® Celeron® Processor N6210

(code name: Elkhart Lake)


Either lower power consumption at the same performance, or higher performance at equal TDP

Up to a 1.7x improvement in single-thread performance

Processor performance boost

Up to 2x performance improvement in graphics over previous generation

Doubling graphics speed for immersive experiences

Up to a 1.5x improvement in multi-thread performance generation over generation

Processor performance boost

Bay Trail vs. Elkhart Lake

Product NamePrevious product versionIASO-W07A-N6210
PlatformBay TrailElkhart Lake
Node22 nm10 nm
Total Cores24
Total Threads24
Processor Base Frequency1.83 GHz1.20 GHz
Integrated GraphicsIntel® HD Graphics for
Intel® Atom®Processor Z3700 Series
Intel® UHD Graphics for
10th Gen Intel® Processors
TDP7.5 W6.5 W
Max Memory Size8 GB32 GB
Memory TypesDDR3L 1333LPDDR4x 8GB (on board)
Use CasesEmbedded Broad Market Commercial Temp,


10-point P-CAP Touchscreen

6 Ports USB 3.2 Gen 1

Fanless Design

Fanless design known as passive cooling technology not only reduces noise but also prevents the accumulation of debris causing blocked vents, potentially damaging electrical components.


Bedside card

Data management

Patient room display

Anesthesia Information Solution

This solution prevents manual transcription errors and enables paperless data management can ensure the correctness and safety of medical record, and greatly improve work efficiency, patient safety and medical quality.

Anesthesia Machine

Anesthesia Machine

Patient Monitor

Patient Monitor

Vitals Gateway

  • USB barcode
  • Key input
  • Smart card
  • RFID

POCi Series

AIS Server

HIS Anesthesia Oracle DB

Patient Info

  • Lab Data
  • OP Schedule
  • ABG Data
  • Medical History
  • Physician List
  • Anesthesia
    Nurse List
  • TPR Vital Sign
  • Allergy History

Network Printer

Paper Report

Electronic Anesthesia Record

  • √ Anesthesia Record
  • √ Billing
  • √ Quality Assurance
  • √ Controlled Medicine Record (Single Sheet)
  • √ Controlled Medicine Record (Report)

POCi Series

I/O Interfaces

  • 1
    12V DC jack
  • 2
    HDMI out
  • 3
    6 x USB 3.2 Gen1(Type A)
  • 4
    Power switch
  • 5
    Clear CMOS
  • 6
    AT/ATX switch
  • 7
    Reset button
  • 8
    2 x GbE LAN


Hardware Spec.

LCD Size 7”
LCD Resolution 1024 x 600
LCD Brightness (cd/m²) 450
LCD Contrast Ratio 800:1
LCD Viewing Angle (H-V) 170˚/170˚
LCD Backlight MTBF 20000
Touch Screen PCAP
Touch Controller EETI
Processor Intel® Celeron® Processor N6210
Supported OS Windows 10
Windows 11
Linux Ubuntu
Ethernet Controller Intel® I225-V
Wi-Fi IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6 AX200
Bluetooth Bluetooth V5.0
Storage On-board eMMC 32GB
RAM On-board LPDDR4x 8GB
Expansion Slots
Expansion Slots 1 x M.2 2230 A Key Slot (PCIe + USB)
1 x M.2 2280 M Key Slot (SATA)
I/O Interface
Rear I/O 1 x 12V DC jack
1 x HDMI™ out
1 x Reset switch
1 x Clear CMOS switch
1 x AT/ATX switch
2 x GbE LAN
6 x USB 3.2 Gen1 (Type A)
Buttons 1 x Power on/off
Indicators Power LED
Physical Characteristics
Thermal Fanless
Mounting VESA 75 x 75 mm
Weight (Net) (kg) 0.72
Weight (Gross) (kg) 1.65
Dimensions (LxWxH) (mm) 190.9 x 127.3 x 43.4
Power Adapter 65W medical grade power adapter
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 95% (non-condensing)
Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Non-operating shock 15G peak acceleration (11ms duration)
Safety & EMC CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2

Ordering Information

IASO-W07A-N6210-R10 7" 450cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210 on-board processor,on board 8GB LPDDR4X,on-board eMMC 32GB,802.11a/b/g/n/ac/ax Wi-Fi 6 module,PCAP touchscreen,R10

Package Contents

Package Content
  • 1 x Power Adapter (65W medical power adapter)

  • 1 x Power Cord (European power cord, 183 cm, C13)
