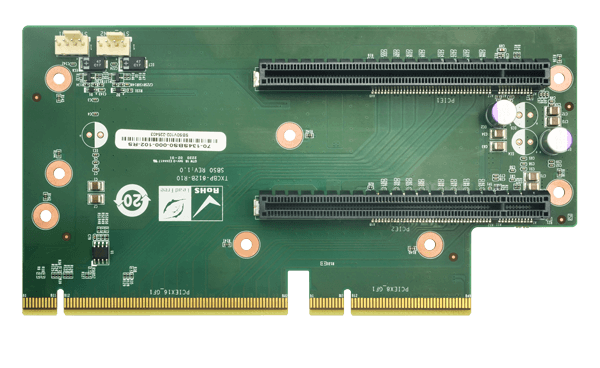

» 2-slot backplane for TANK-XM81 series expansion chassis
» Two PCIe Gen 4 x16 (PCIe x8 signal)
» Two system fan connector
» Compatible chassis: TXC-XM81-3S-R10
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | TANK-XM81 series customization |
| System | |
| Cooling method / System Fan | 2 x 4-pin (1x4) |
| Physical Characteristics | |
| Mounting | TXC-XM81-3S |
| Dimensions (LxWxH) (mm) | 175.8 x 92 |
| I/O Interface | |
| Expansion | 2 x PCIe x16 : Gen 4 (PCIe x8 signal) |
Ordering Information
| TXCBP-XM81-2B-R10 | Tank 81 Series Expansion Peripheral Card, backplane module, 2 Slot, 2xPCIe*8 |
|---|
