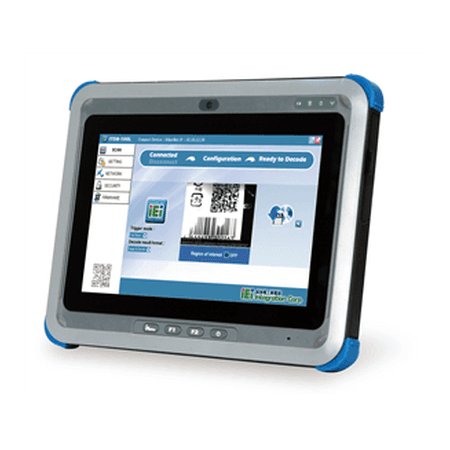

ICEROCK 3

Ultra Tough Assistant

End of Life

End of Life Notice

* Effective Date: 2018/04/17

» 10.1” 350 cd/m² TFT LCD with capacitive touch
» Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform
» Powered by Windows® Embedded Standard 7 P
» Bluetooth, Wi-Fi, 3.75G wireless with GPS
» 1D/2D barcode reader, 13.56MHz RFID reader
» 1.3-megapixel CMOS front camera and 5-megapixel CMOS rear camera
» Built-in hot-swappable battery
» Optional Windows 8 operating system

Hardware Spec.

Communication
Bluetooth Bluetooth V3.0
GPS GPS with internal antenna
modem UMTS/HSUPA Band 1, 2, 4, 5, 6, 8
Wi-Fi Wi-Fi 802.11b/g/n
Data Collection
Barcode 1D/2D imager scan engine
Camera 1.3-megapixel front camera
5-megapixel rear camera
Light Sensor N/A
RFID 13.56MHz RFID supports ISO 14443A/B
(MIFARE®, FeliCa™)
Dimensions
Dimensions 297 x 234 x 32
Display
Brightness(cd/m2) 350 cd/m²
Digitizer N/A
LCD Size 10.1” TFT LCD
Max Resolution 1280 x 800 pixels
Touch Screen Projected capacitive type
Viewing Angle 85/85/85/85 Deg.
Environment
Drop Survival 1.2 m
Environmental Protection Front panel: IP65
Back side: IP64
Humidity 5%~95% non-condensing
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
I/O Interface
Audio 1 x Headphone
1 x Mic-in
2 x 1 W speakers
Expansion 3 x USB 3.0
1 x SIM card slot
1 x Micro HDMI™

1 x Micro HDMI™
Micro HDMI™ Micro HDMI™ x1
USB 3 x USB 3.0
1 x SIM card slot
Indicator&Buttons
Hot Keys 1 x Power button
2 x Hot keys
1 x iMenu
LED Indicator Battery charging/peripheral device/storage/wireless device
Power
Battery 40 W standard battery pack
40 W optional battery pack
Power adapter Input AC: 100~240V
Output DC: 19V / 3A
System
Chipset Intel® HM76
CPU Intel® Celeron™ 1007U / i7-3517UE
Memory Max. 4.0 GB DDR3 SDRAM on board and optional 4.0 GB DDR3 SDRAM SO-DIMM
Operating System Microsoft® Windows® Embedded Standard 7 P
Storage 32GB MLC mSATA
Weight
Weight 1.9 kg

Ordering Information

ICEROCK3-T10-HU-R10 Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M/5M camera, 2nd battery, GPS, barcode, 3.75G, WS7P, RoHs
CEROCK3-T10-ETC-R10
ICEROCK3-T10-HUI-R10 Intel I7-3517 CPU, Capacitive touch, IPS panel, 8GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, 1.3M/5M camera, 2nd battery, GPS, barcode, 3.75G, WS7P, RoHs
