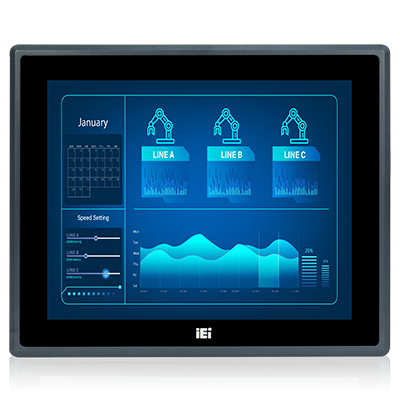

15” 8th gen Intel® Whiskey Lake-U Industrial Panel PC

End of Life

  • PPC-F15D-ULT5
  • PPC-F15D-ULT5
  • PPC-F15D-ULT5
  • PPC-F15D-ULT5

End of Life Notice

* Effective Date: 2023/11/09

» 15” Panel PC with 8th gen Intel® Whiskey Lake-U processors
» Low power consumption and fanless design
» IP66-rated front panel for water and dust resistance
» Touch screen with anti-UV / anti-glare coating
» Support PoE PD power
» Support NVMe SSD

8th Gen Quad-core High-speed Processing and Transmission

IThe PPC-F-ULT5 series is equipped with an 8th Gen Intel® Core™ i5- 8365UE processor, which is a quad-core processor with a maximum turbo frequency of 4.1 GHz, up to 32 GB of DDR4 memory support, and an average CPU mark of 6402 that is 1.7x higher than the previous generation. In addition, the PPC-F-ULT5 series also provides four USB 3.2 Gen 2 ports to meet the demands of high-speed data processing and transmission.

photo description
photo description

IEEE 802.3 bt Standard PoE PD Panel PC

PoE allows electronic devices to receive both power and data through one Ethernet plug-in, which means less cabling and less cost is required for factory automation.

photo description

The PPC-F-ULT5 series can be optionally equipped with an IEEE802.3af/at/bt-compliant GPOE-PD-BT01-R10 card for connecting to an IEEE802.3bt switch to operate as a PoE Powered Device (PD).

photo description

IEEE802.3at Load-sharing

Customers who are unable to upgrade their PoE Switch [PSE] to IEEE802.3bt standard can upgrade the PPC-F-ULT5 series panel PC by simply installing IEI's GPOE-PD-AT01 module, and power the device with two IEEE802.3at standard PSE ports.

Friendly Hardware Design

Silent Fanless System & Fanless Design

  • Higher reliability and durability
  • Low power consumption
  • Dust and debris resistance
  • Silent

Triple GbE Ports,Creating a Networked Industrial Control System Environment

Suitable for Semi-outdoor Environment

IP66-rated front panel for water and dust resistance

Anti-glare (AG) and UV-resistant Touch Screen

The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen.

Integrated integrated I/O

Hardware Spec.

LCD Size 15”
Brightness(cd/m2) 450
Max Resolution 1024 x 768
Contrast Ratio 800:1
Backlight MTBF(hrs) 70000
Cooling method / System Fan Fanless
CPU 8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz
Chipset Intel® Whiskey Lake-U
Memory Ext. 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM
Memory Max. 32GB
Storage 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
I/O Interface
Ethernet 2x Intel® I211
1x Intel® I219
Audio Codec ALC888S
Input +12VDC
Power adapter 12V @ 8A(96W)
Power consumption 56W
Operating Temperature -10°C ~ 50°C (with air flow)
Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Operating Shock 10G acceleration part to part (11ms)
Safety & EMC CE, FCC
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front panel IP66
Physical Characteristics
Color PANTONE 296 C
Mounting Wall mount, Panel mount, Rack mount
Dimensions (LxWxH) (mm) 378.5 x 303 x 74.6
Net Weight 5.7kg
Construction Front Panel Aluminum
Cutout Dimensions 361.1 x 285.6
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD)
LCD Color 16.2M
Pixel Pitch (mm) 0.29 x 0.29
Viewing Angle (H-V) 160°/150°
Touch Screen PCAP 10-point
Touch Controller EETI
Other Features
TPM TPM 2.0(on-board)
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Clear CMOS
1 x Power Switch (with LDE(Blue))
1 x Line out
2 x RS-232 (1 x RS-232/422/485, 1 x RS-232)
1 x HDMI™
3 x LAN (2 x Support PoE(IEEE 802.3at/bt, optional))
1 x DC Input Jack (12V Din 4Pin/lock)
1 x Reset Button
4 x USB 3.2 Gen2x1

Ordering Information

PPC-F15D-ULT5-C/4G/PC-R10 15" 450 cd/m2 1024 x 768 Panel PC with Intel® 14nm 8th Whiskey Lake Celeron® 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10

Package Contents

Package Content
  • 1 x PPC-F15D-ULT5 panel PC

  • 1 x Power adapter

  • 1 x Power cord

  • 4 x Screws (M4*8) for VESA mounting

  • 4 x Screws (M3*4) for HDD installation
