POCi-W22C-ULT5

22” Medical Panel PC with 8th Generation Intel® mobile ULT Core™ i7/i5 processor

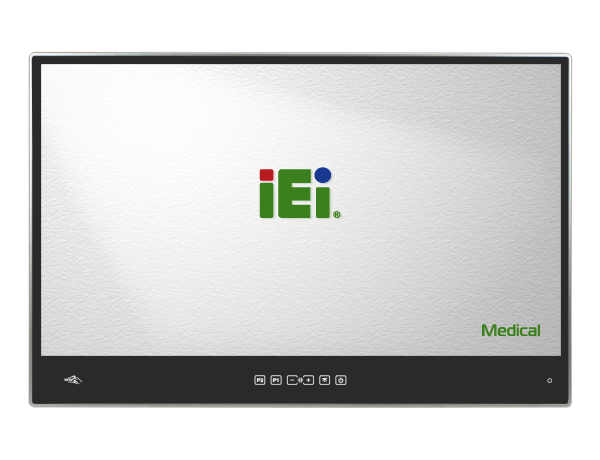

POCi-W22C-ULT5 Medical Panel PC
IEI POCi-W22C-ULT5 Medical Panel PC-1
IEI POCi-W22C-ULT5 Medical Panel PC
IEI POCi-W22C-ULT5 Medical Panel PC
IEI POCi-W22C-ULT5 Medical Panel PC
  • POCi-W22C-ULT5 Medical Panel PC
  • IEI POCi-W22C-ULT5 Medical Panel PC-1
  • IEI POCi-W22C-ULT5 Medical Panel PC
  • IEI POCi-W22C-ULT5 Medical Panel PC
  • IEI POCi-W22C-ULT5 Medical Panel PC
» 14nm 8th generation Intel® Whiskey Lake U platform
» Aluminum front bezel (IP66) & PC/ABS rear cover
» Chemical etching AG coating
» Modular PCIe x4 expansion slot
» Dual reading light
» FHD IPS panel with optional DICOM preset module

Modular Expansion Design

The highly expandable PCIe x4 slot makes the whole system more flexible and easily meet the individual needs from different applications. For instance, adopting an AI accelerator card to enhance computing power, adding an all-in-one capture card to connect with medical devices, integrating PoE injector card with webcam, or expanding the desired I/O card for multiple usage.

IEI Developed DICOM Module Preset

Perfect Fit in Various Medical Fields


Hardware Spec.

Form factor
Form factor * 14nm 8th generation Intel® Whiskey Lake U platform
* Aluminum front bezel (IP66) & PC/ABS rear cover
* Chemical etching AG coating
* Modular PCIe x4 expansion slot
* Dual reading light
* FHD IPS panel with optional DICOM preset module
Display
LCD Size 21.5” (16:9)
Brightness(cd/m2) 350
Max Resolution 1920 (W) X 1080 (H)
Contrast Ratio 1000:1
Backlight MTBF(hrs) 30,000 (LED backlight)
System
Cooling method / System Fan fanless
CPU Intel® Core™ i7-8665UE (Whiskey Lake ULT platform)
Intel® Core™ i5-8365UE (Whiskey Lake ULT platform)
HDD 1 X 2.5” accessible SATA HDD/SSD bay
SSD 1X M.2 2242/60/80 M key (PCIe x4)
Communication
Bluetooth Bluetooth V5.0 (M.2 2230)
Wi-Fi IEEE 802.11 ax 2T2R module (Wi-Fi 6 Module)
I/O Interface
Ethernet 1 X Isolated Gigabit LAN (I219 supports Intel® vPro)
1 X Isolated Gigabit LAN (I211)
Audio 1 X Combo audio-out / mic-in
Expansion 1 X PCIe x4
3S3P Li-ion battery pack, 11.1V, 7800mAh
150W, 85 ~264VAC, medical power supply
USB 4 X USB 3.2 Gen 2 port
2 X USB 2.0 port (side)
RAM DDR4 SO-DIMM up to 64GB
Power
Input 19V DC input
Power adapter 150W medical power adapter
Power Supply 150W, 85 ~264VAC, medical power supply (Optional)
Environment
Operating Temperature 0°C ~ 40°C
Operating Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Safety & EMC CE, FCC Class B Part18
EN 60601-1:2006/A1:2013 (Edition 3.1)
EN 60601-1-2: 2015 (Edition 4.0)
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front: IP66
Physical Characteristics
Color White
Mounting Wall, Stand and Arm VESA 75/100
Dimensions (LxWxH) (mm) 507.5 X 335.5 X 64.5
Net Weight 6.9 kg
Construction Front bezel: Aluminum die-casting
Rear cover: ABS+PC plastic (Chemical resistant)
Touch
Touch Screen Projected capacitive type with USB interface
Touch Controller EETI (80H84)
Touch Pad Projected capacitive type with 10-point multi-touch
Chemical etching AG
Other Features
Audio 2 X 3W speaker
TPM TPM-IN03-R10 (Optional)
OSD Function
OSD Function Power on/off
Reading light on/off
Brightness +
Brightness -
Backlight & touch lock on/off-->P1
DICOM Mode button ->P2

Ordering Information

POCi-W22C-ULT5-i7/PC/4G-R10 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10
POCi-W22C-ULT5-i7/PC/4G-BP-R10 21.5” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10
POCi-W22C-ULT5-i7/PC/4G-B-R10 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i7-8665UE (15W) 1.7GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10
POCi-W22C-ULT5-i5/PC/4G-R10 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,R10
POCi-W22C-ULT5-i5/PC/4G-BP-R10 21.5” 250cd/m² FHD medical panel PC with 8th Gen 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ built-in Power,R10
POCi-W22C-ULT5-i5/PC/4G-B-R10 21.5” 250cd/m² FHD medical panel PC with 8th generation 14nm Intel® mobile Core™i5-8365UE (15W) 1.6GHz on-board processor (ULT),one 4GB DDR4 RAM,802.11 ax Wi-Fi module,PCAP touchscreen w/ AG coating,microphone,w/ battery,R10

Package Contents

Package Content
  • 1 X 150W medical power adapter

  • 1 X European power cords, 183 CM, C13
